C314

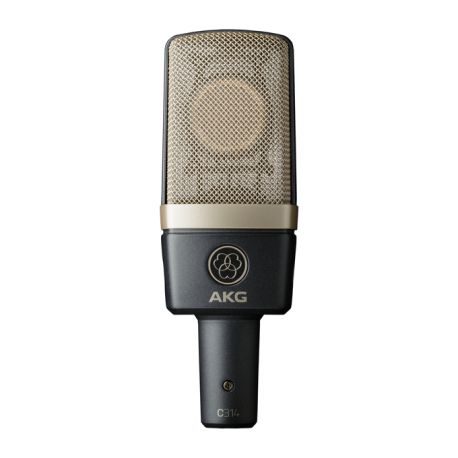

AKG Large-Diaphragm Multipattern Condenser Microphone (20 Hz to 20 kHz) - Black

The highly versatile AKG C314 Large-Diaphragm Multipattern Condenser Microphone is designed to record all manner of vocals, drums, and acoustic/electric instruments in the studio, on stage, or in broadcasting situations.
Conceived as a cost-effective alternative to the renowned C414 microphone, this microphone uses the same 1" dual-diaphragm capsule as the C414 XLS, enabling the choice of four polar patterns - omnidirectional, cardioid, supercardioid, and figure-8.
The transducer features technology that allows the membrane to vibrate freely, resulting in a wide frequency range and detailed transients, even at high sound-pressure levels.

With the additions of a switchable -20 dB pad and a 100 Hz low-cut filter, the C314 is well suited for close-miking applications as well as overhead placement.
It even sports an overload detection LED to let you know when it's time to use the pad or turn down your preamp.
The C314 is a rugged microphone built to withstand the severities of professional studios or the road.

The integrated capsule suspension helps reduce mechanical noise and resonance for a cleaner sound.
The metal body with scratch-resistant finish features a double-mesh grille which protects the capsule and ensures efficient rejection of RF interference without affecting acoustics.
The C314 comes with a metal carrying case, a foam windscreen, a spider-type shockmount, and a stand mount.

° 1" Dual-Diaphragm Capsule
With a full-frequency range of 20 Hz to 20 kHz and low self-noise, the C314 microphone is built on the rich heritage of the C414 XLS capsule; its dual computer-matched diaphragms offer polar-pattern accuracy while the integrated suspension dramatically reduces noise for pure, faithful recordings.

° Four Selectable Polar Patterns
The C314 is the multi-instrumentalist in your microphone rig ready to fill in wherever needed. Whether it's cardioid, supercardioid, omni, or figure-8 polar pattern, there are plenty of ways to get the most natural sound from any instrument-electric and acoustic guitars, drums, and much more.
Employ a supercardioid pattern to reduce drum spill, then quickly switch to a figure-8 pattern to balance out two vocalists.
These easy-to-access options make the AKG C314 suitable to any studio with limited space.

- Cost-effective alternative to the C414 family
- Same capsule as C414 B-XLS
- Four selectable polar patterns for every application
- 155 dB maximum SPL (pad on)
- Switchable -20 dB pad and 100 Hz low-cut filter
- Integrated capsule suspension to reduce mechanical noise
- Rugged double-mesh grille for RF immunity but unaffected acoustics
- Operates on 48V phantom power (accepts 44 to 52 VDC phantom power)
- XLR 3-pin output connector
- Spider-type shockmount, stand mount, foam windscreen, and metal carrying case included




Microphone
Primary Applications: Live Sound, Studio Recording
Form Factor: Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources: Vocals, Instrument
Sound Field: Mono
Operating Principle: Pressure Gradient
Element Type: Condenser
Diaphragm: 1" / 25.40 mm
Polar Pattern: Cardioid, Figure-8, Omnidirectional, Supercardioid
Pattern Selection: Switched (Adjustable on Mic)
Windscreen: Foam (Included)

Performance
Frequency Range: 20 Hz to 20 kHz
Maximum SPL:
- 135 dB SPL (.5% THD)
- 155 dB SPL (.5% THD, with Pad)
Impedance: 200 Ohms
Load Impedance: = 1000 Ohms
Sensitivity: Cardioid: -34 dBV
Dynamic Range: 147 dB A-Weighted
Signal-to-Noise Ratio: 86 dB A-Weighted
Equivalent Noise Level: 8 dB A-Weighted

Connectivity
Output Connector: 1 x XLR 3-Pin Male (on Mic)

Power
Operating Voltage: 44 to 52 V (Phantom Power)
Operating Current Consumption: 3 mA

Physical
Mounting: Mic Clip/Stand Adapter, Shockmount (Included)
Included Case: Hard Case
Included Filters: None
Construction Material: Metal
Operating Temperature: 14 to 140°F / -10 to 60°C
Dimensions: H: 1.7 x W: 2.2 x L: 6.3" / H: 4.3 x W: 5.5 x L: 16 cm
Weight: 10.58 oz / 300 g
