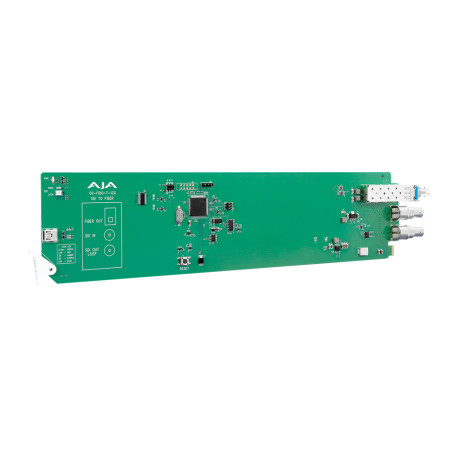

AJA OG-FIDO-T-12G-ST 12G-SDI to Fiber converter

The OG-FiDO-T-12G-ST is a state of the art, openGear compatible 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The 12G-SDI input is reclocked with best in class input jitter tolerance. A reclocked looping 12G-SDI output is also provided. The OG-FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.

AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames, including AJA's OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS®, and Linux®, offering remote control and monitoring over a PC or local network.

Features
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Inputs: 1x 12G-SDI BNC with SDI Loop out
Outputs: 1x 12G-SDI BNC; 1x Single Mode ST Connector
Monitor via openGear DashBoard software
Support for HDR - High Dynamic Range video
Input Present and Input SMPTE Lock LEDs
Automatic detection and reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
Nominal Wavelength; Tx: 1310 nm (typ)
Power: 3 watts Max
Hot-swappable
Appropriate Fiber SFP included
Rear I/O card included
Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Five year warranty
