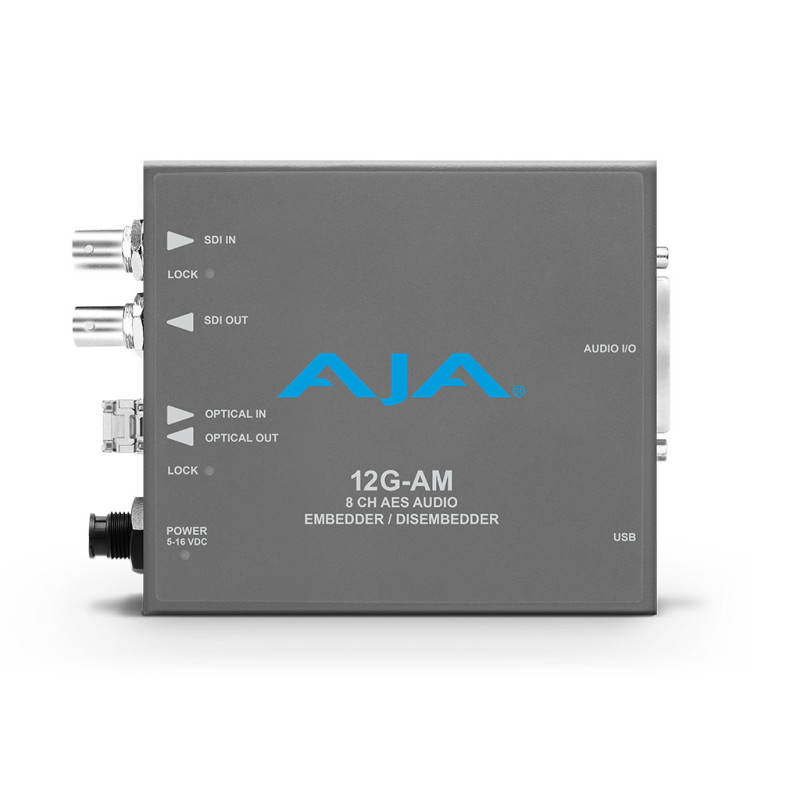

AJA 12G-AM-R 12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP

12G-AM-R
12G-SDI 8-Channel AES Embedder/Disembedder with LC Fiber Rx SFP

• 12G-SDI Input and Output up to 4K/UltraHD
• 8-channel balanced AES audio Embedder/Disembedder
• Ships with a LC Fiber single channel SFP Receiver for extending 4K/UltraHD signals over long distances
• AES audio Disembedding is always functional with four AES outputs
• AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
• Selectable AES audio levels
• Automatically detects and configures the input video standard
• Small form factor allows for a wide variety of installation locations
• Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
• USB connectivity via AJA Mini-Config software
• Dipswitch configuration
• 5-16 VDC Power
• Five year warranty

Supplied Breakout Cable
The included breakout cable (12G-AM CBL DB25-8XLR) supports 2-channels of AES per XLR connector for 8-Channels of input and 8-Channels of output simultaneously.

An optional BNC breakout cable for AES (12G-AM CBL DB25-8BNC) is available separately.

USB and Mini-Config Support
AJA's free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Industry Leading Support
AJA's technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product's Manual for additional specifics around warranty conditions for the product itself.
