Sennheiser Sennheiser Passive Circulary Polarized UHF Wide-Band Antenna 450 - 960MHz

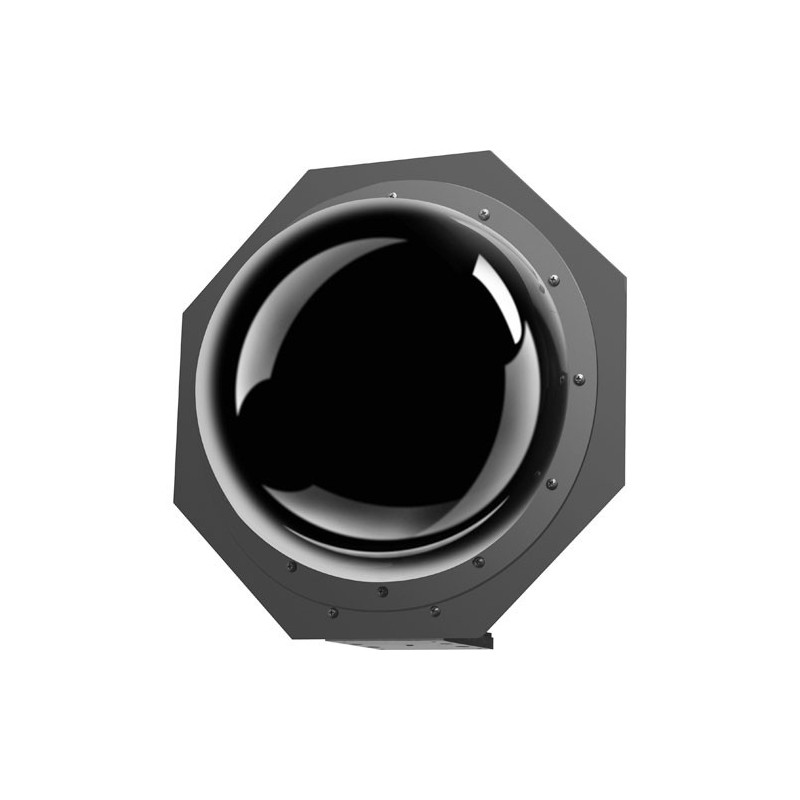

Sennheiser A5000CP Passive Circulary Polarized UHF Wide-Band Antenna for Wireless Microphones and Monitor Systems (450 - 960MHz)

The Sennheiser A5000CP Circulary Polarized Antenna is designed for use with wireless microphones and monitor systems to achieve higher radio-frequency (RF) signal at long range.
The A5000CP operates on a wide-band UHF frequency of 450 - 960MHz, making it universal and capable of operating with most UHF wireless systems.

The Circularly Polarized dramatically reduces interference and drop-outs when used with non-diversity wireless systems.
The highly directional antenna features a 40 degree beam angle, minimizing intermodulation and interference while increasing range.

? High directional and passive performance achieves great range.
? Unique circularly polarized design reduces "drop-outs" caused by multi-path problems.
? Wideband design (450-960 MHz) works across multiple frequency ranges.

Antenna Type: Circular Polarized Helical
Bandwidth: 450 - 960 MHz
Gain: min. 8dBi
Beam Angle: 40 degrees
Connector Type: N (female)
Mount: Lexan Plate 3/8-16 Helicoil
Dimensions: 3.97 x 3.66 x 0.37" (101 x 93 x 9.5mm)
Weight: 3 lbs (1.35 kg)

Packaging Info
Package Weight: 6.6 lb/ 3 kg
Box Dimensions: 16.5 x 16 x 13"/42 x 41 x 33 cm
