WIRELESS VIDEO & AUDIO TRANSMISSION SYSTEM 4TX Hollyland

Zoomer

Hollyland WIRELESS VIDEO & AUDIO TRANSMISSION SYSTEM 4TX

Hollyland

500m WIRELESS VIDEO & AUDIO TRANSMISSION SYSTEM 4TX -

Plus de détails

6 354,98 € TTC 6354.98

5 295,82 € HT

Ajouter à la liste

Accessoires

Voir plus

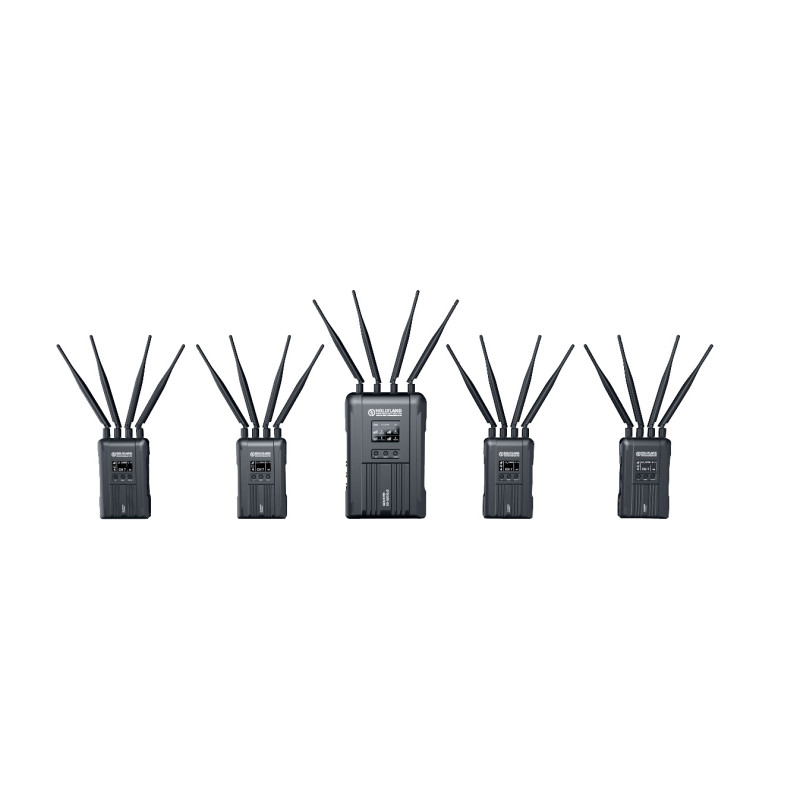

SYSCOM 421 (4:1) - 500m WIRELESS VIDEO & AUDIO TRANSMISSION SYSTEM

Syscom 421 (4:1) can be widely used in educational activities, filmmaking, sports event broadcast, live wedding broadcast, etc..etc..

- 4 TX Synchronized A&V Transmission
- Up to 1800ft Range
- 0.07S Latency
- SDI + HDMI Input & Output (4x)
- 1080P Full HD
- RS422 / RS485/ LAN Control
- TALLY Control
- RTSP Streaming

Packing List:

Receiver x 1
Transmitter x 4
5GHz Antenna x 25
User Manual x 1
Power Adapter x 1
OTG Cable x 1
7-Inch Magic Arm x 4
DC Conversion Cable x 5

TRANSMITTER (TX):

Interface:
SDI Input (BNC Female) / HDMI Input (Type A Female)
3.5mm TALLY Output / 4 Antenna (RP-SMA Male)
DC Power Input / USB Type-C / LAN / RS485 / RS422

Supply Power Range: 7~36V DC
Power Consumption: <12W
Weight: 431.5g (External Antenna Excluded)

Dimension:
(LxWxH): 88x30x144mm External Antenna and Battery Plate Excluded

Input / Output Video Format:
HDMI : 480P60 Hz; 576P50 Hz; 720P50/60 Hz; 1080i50/60 Hz; 1080P24/25/30/50/60 Hz
° SDI : 720P50/60 Hz; 1080i50/60 Hz; 1080P24/25/30/50/60 Hz
Frequency : 5.1~5.9GHz
Transmission Power : MAX 22dBm
Receiver Sensitivity : -90dBm
Transmission Latency : 0.07s
Bandwidth : 40MHz

----------------------------------------------------------------------

RECEIVER (RX):

Interface:
SDI1, SDI2, SDI3, SDI4 Output (BNC Female)
HDMI1, HDMI2, HDMI3, HDMI4 Output (Type A Female)
4 Antenna (RP-SMA Male) / DC Power Input / USB Type-C
LAN / RS485/RS422

Supply Power Range: 18~36V DC
Power Consumption: <32W
Weight: 1621g (External Antenna Excluded)
Dimension: (LxWxH): 148x62x242mm External Antenna and Battery Plate Excluded

Input / Output Video Format:
° HDMI : 480P60 Hz; 576P50 Hz; 720P50/60 Hz; 1080i50/60 Hz; 1080P24/25/30/50/60 Hz
° SDI : 720P50/60 Hz; 1080i50/60 Hz; 1080P24/25/30/50/60 Hz
Frequency : 5.1~5.9GHz
Transmission Power : MAX 22dBm
Receiver Sensitivity : -90dBm
Transmission Latency : 0.07s
Bandwidth : 40MHz
