Teradek Bolt 6 LT TX/RX 1500 Set VM

The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set's included Bolt 6 LT video Transmitter and Receiver.
10-2270-V V-Mount

Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

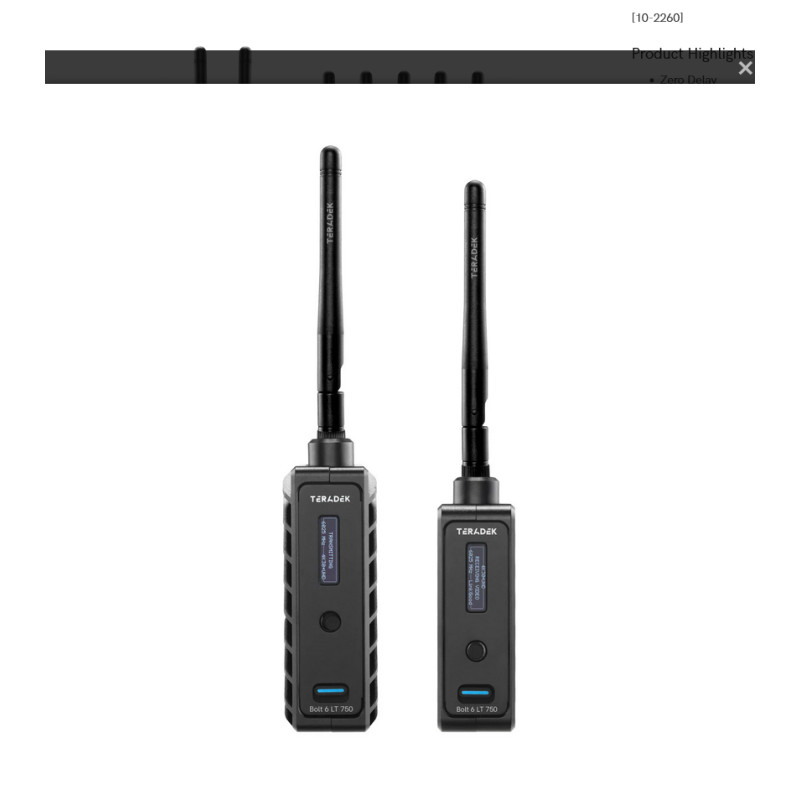

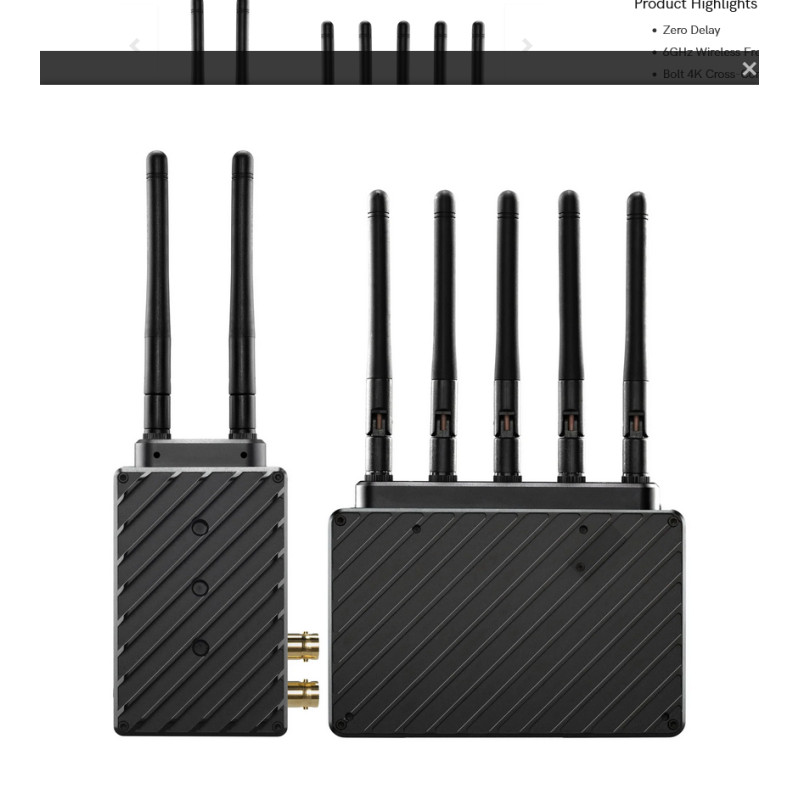

The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you'll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience.6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.

Zero Delay
6GHz Wireless Frequency Access
Bolt 4K Cross-Compatibility
Improved Long Range Mode
Inputs: HDMI, 3G-SDI
Outputs: HDMI, 3G-SDI

Circa 6 GHz
Router Wi-Fi, telefoni cellulari, dispositivi IOT e sistemi video wireless della concorrenza sono tra i tanti dispositivi che utilizzano la frequenza a 5 GHz per comunicare in modalità wireless, rendendolo uno spazio molto affollato in cui è probabile che incontrerai frequenti interferenze e persino interruzioni video. Bolt 6 utilizza la frequenza wireless a 6 GHz di recente apertura per un ambiente wireless notevolmente più silenzioso (sebbene possa ancora essere impostato in modalità 5 GHz per la compatibilità con le versioni precedenti). In modalità 6GHz, gli utenti Bolt 6 accederanno a connessioni più veloci e minori interferenze per una migliore esperienza wireless. La frequenza a 6GHz è ora disponibile negli Stati Uniti e in Canada secondo le specifiche del governo UNII-5. Altri paesi apriranno la frequenza a 6 GHz nel 2023.

3G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Transmits up to 750' Line of Sight
Supports up to 4K30 Resolution Input
3G-SDI/HDMI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
AES-256 Encryption, 7 x Antennas
Bluetooth Mobile App, Spectrum Analyzer

Antenna Ports Transmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x BNC (3G-SDI) Input
Receiver: 1 x HDMI Type A Output
Receiver: 1 x BNC Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x Micro-USB Input
Encryption 256-Bit AES
Wireless
Wireless Range 1500' / 457.2 m (Line-of-Sight)
# of Channels 13 (40 MHz)
25 (20 MHz)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94/50
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 28 VDC

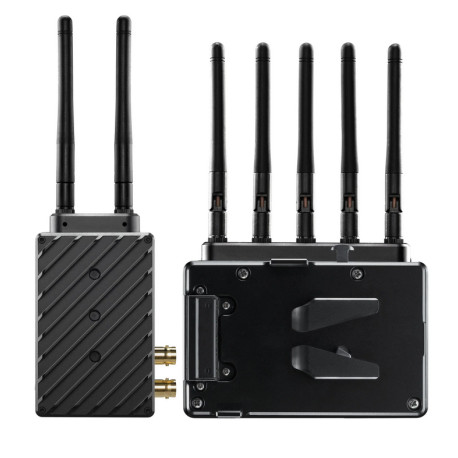

Battery Type Receiver: 1 x V-Mount
Power Consumption Transmitter: 9 W
Receiver: 11 W
Mounting
Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight Transmitter: 7.3 oz / 206 g
Receiver: 10.3 oz / 292 g
