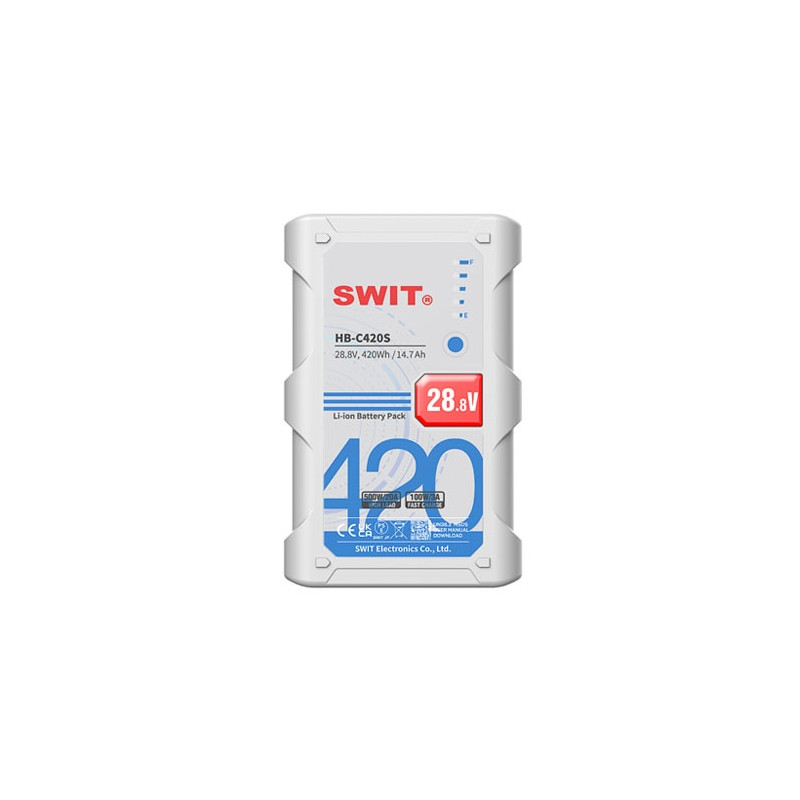

HB-C420S

Swit 500W High Load 420Wh V-mount Battery - White

Huge V-mount Battery for Lights
HB-C420S provides the world's largest capacity: 420Wh of handheld V-mount battery, and the world's largest constant power load: 500W, to drive high power cine lights at longest time.
For example, 2x HB-C420S could power Aputure LS 600C PRO at 100% output, and at least 1.2 hours.

28.8V, 420Wh, 500W Load
HB-C420S consists of 24pcs Li-ion cells, 28.8V (22-33.6V) high voltage, 420Wh large capacity, 500W constant load.
Please do not use the battery on the device that doesn't support 22-33.6V input.

500W Constant High Load
HB-C420S outputs at least 500W high load even at 1% capacity (Peak load up to 650W), to drive high power gears like the cines lights.

48V 750W Power Solution
Use SWIT dual batteries light stand adaptor TD-R230S, 2x HB-C420S could output 48V 750W to power cine lights like Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 & Vortex 8, Aputure Nova P300/P600 etc.

Creamsource Vortex 8 Power
2x HB-C420S and TD-R230S power adaptor could output 48V 750W DC to full power drive Creamsource Vortex 8 light which requires 650W power.
The 2 batteries totally have 840Wh capacity, comparable with a large floor battery but it's attached on light stand for easy movement, and will power the Vortex 8 for at least 1hr 20min.

100W Fast Charging
HB-C420S supports DC 33.6V 100W fast charging by PC-P461S charger, to save more than 60% charging time.
The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Nominal Voltage: 28.8V
Capacity: 420Wh/ 14.6Ah
Power Load: 500W constant, 650W peak
Charging: DC 33.6V, 3A

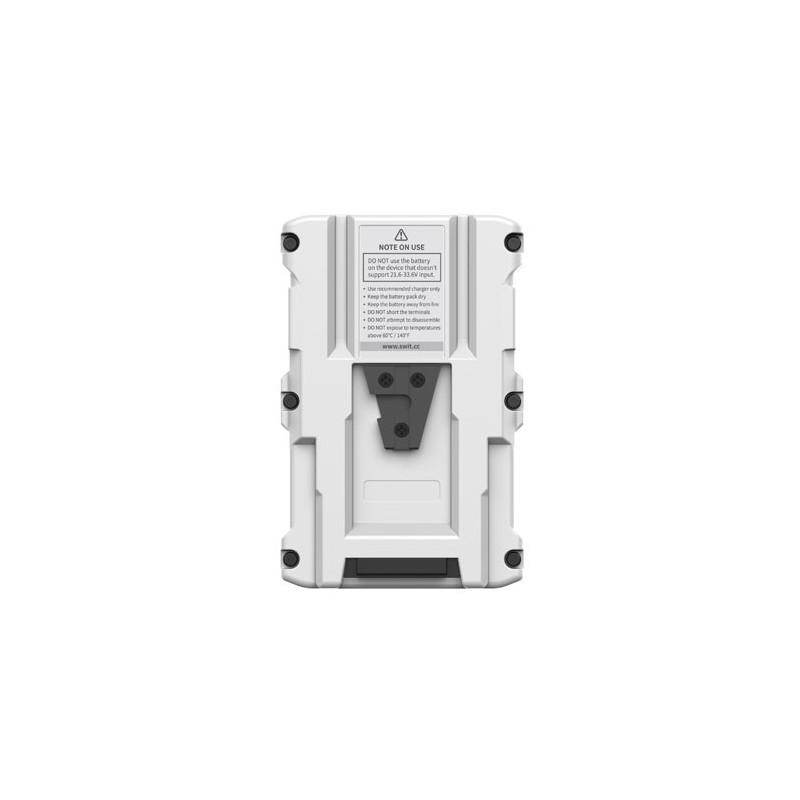

Mount Type: V-Mount
Charging Temperature: 0-40°C
Discharging Temperature:
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net Weight:
Net: 2.07kg
With package: 2.15kg
Dimensions: 155×101×80mm
