KA-S30S

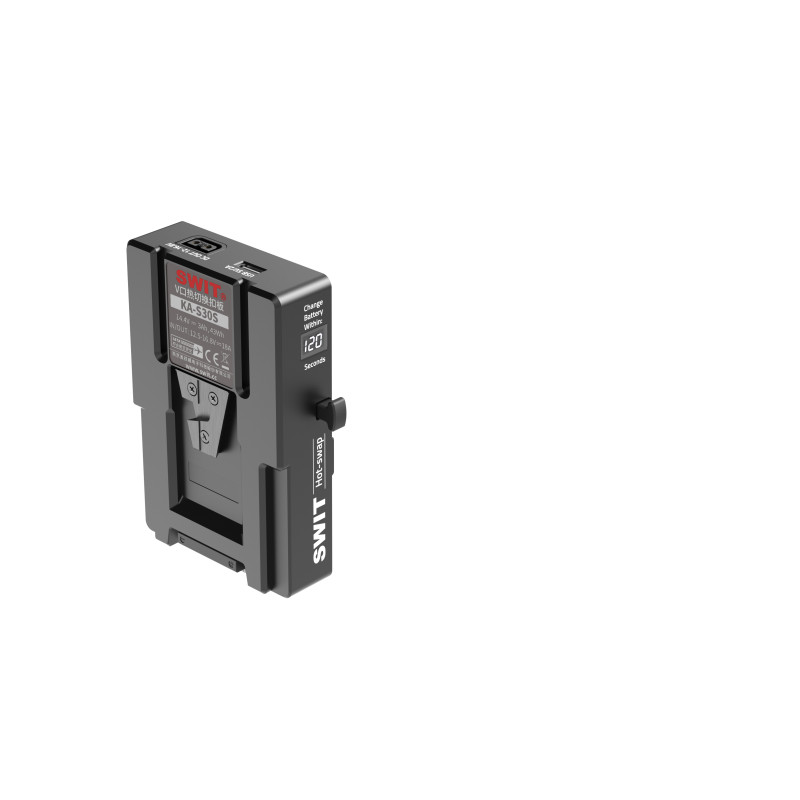

KA-S30S High load with multi-sockets Hot-Swap Plate, 14V, V-Mount to V-mount

KA-S30S is a V-mount extended plate with battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don' t need to switch off the cameras with this hot-swap plate.

43Wh, 200W High Load

KA-S30S has CNC alluminum housing, to protect the inner 4 battery cells. It' s 14.4V nominal voltage, 43Wh capacity, and featured 200W constant high load, for the high power cine cameras and all camera-top equipments.

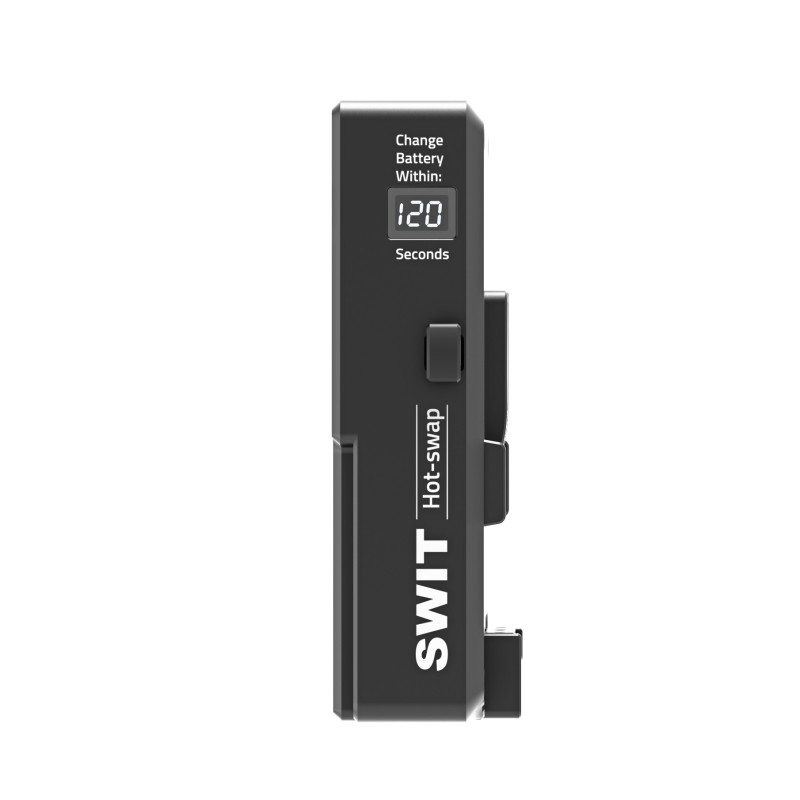

120 Seconds Countdown Display

The hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from
120s. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time. The inner cells will ensure at least 120 seconds at 200W high load even after 500 times cycle.

Power Interfaces

KA-S30S provides:
1x 2-pin LEMO 12-16.8V 38W/3A out
2x D-tap 12-16.8V 125W/10A out
1x USB-A 5V/2A output
1x 8-pin 12-16.8V DC input (For power station hotswap)

15mm Rod Adaptor

KA-S30S provides with a free 15mm Rod
Adaptor in the package, to install on 15mm
rig systems to power the cameras without
V-mount plate.
