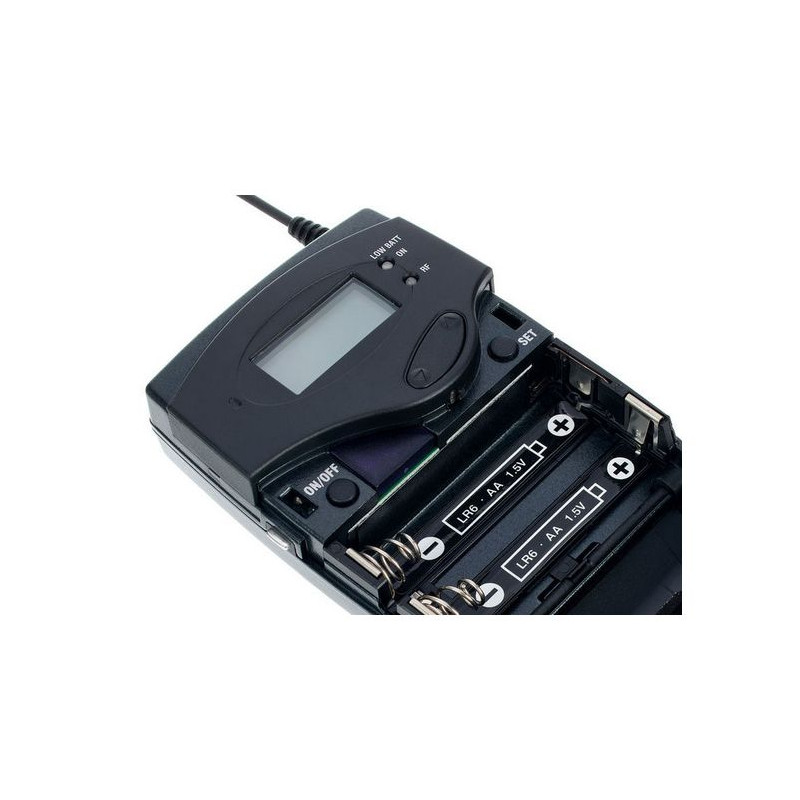

Portable Receiver Series 100 - 823 - 865 MHz

Powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

Features

Powerful camera receiver, easily mounted on any kind of camera

Excellent sound and construction quality

Easy to use and fast setup time

Powerful and reliable wireless transmission

Range: up to 100 meters / 330 feet

Up to 8 hours of operation time


What's in the Box:

EK 100 G4 camera receiver
2 AA batteries
CA 2 camera adapter
CL 1 3.5 mm jack cable
CL 100 XLR to 3.5 mm jack adapter cable
quick guide
safety guide
manufacturer declaration sheet

Frequency range: E: 823 - 865 MHz

Dimensions: Approx. 82 x 64 x 24 mm

Compander: Sennheiser HDX

THD, total harmonic distortion: = 0.9 %

Weight: (incl. batteries) approx. 160 g

Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)

Signal-to-noise ratio: = 110 dBA

Switching bandwidth: up to 42 MHz

Peak deviation: ±48 kHz

Nominal deviation: ±24 kHz

Operating time: Typically 8 h

Modulation: Wideband FM

Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption:
at nominal voltage: typ. 180 mA
with receiver switched off: = 25 µA

Adjacent channel rejection: = 65 dB

Intermodulation attenuation: = 65 dB

Powering: 3 V battery / 2.4 V rechargeable battery

Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity: < 1.6 µV for 52 dBA eff S/N

Squelch: low: 5 dBµV, middle: 15 dBµV, high: 25 dBµV

Temperature Range: -10 °C to +55 °C

Receiver Principle: Adaptive diversity

Blocking: = 70 dB
