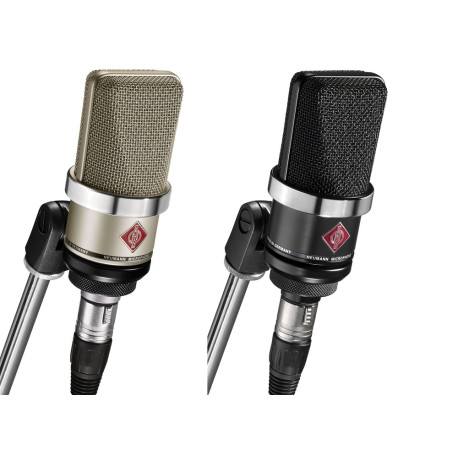

TLM102

The TLM 102 large-diaphragm condenser microphone packs the characteristic Neumann looks and sound quality into a compact and affordable design. The mic features a large pressure gradient condenser capsule that is designed to handle extremely high SPL levels, making the mic perfect for a variety of applications, including percussion pickup. The capsule is also internally shock-mounted to prevent unwanted noise from vibrations.

The mic has a linear response, with a slight boost in the 6kHz range to provide excellent vocal presence. The mic's cardioid pickup pattern provides excellent off-axis rejection so you only pick up desired sounds. The metal grille has an integrated pop filter to minimize the impact of plosive vocals.

The TLM 102 features transformerless circuitry for noiseless operation, resulting in impeccably clean audio. The mic operates on standard 48V phantom power and has a 3-pin XLR connector for use with a variety of sound systems and devices; ideal for home, mobile, studio, or broadcast applications.

Compact design with characteristic Neumann looks

Large pressure gradient condenser capsule is internally shock-mounted to prevent vibration noise

Handles extremely high SPL levels, ideal for picking up loud sources such as drums and amps

Linear response for minimal coloration and clearly defined bass, with a slight boost in the 6kHz range to provide excellent vocal presence

Cardioid pickup pattern provides excellent off-axis rejection so you only pick up desired sounds

Transformerless circuitry for noiseless operation and impeccably clean audio

Metal grille has an integrated pop filter to minimize the impact of plosive vocals

Operates on standard 48V phantom power

Standard 3-pin XLR connector for use with a variety of sound systems and devices

Technical Data
===================
Acoustical operating: Pressure gradient transducer
Maximum SPL for THD 0.5%2): 144 dB
Directional pattern: Cardioid
Maximum output voltage: 13 dBU
Frequency range: 20 Hz...20 kHz
Dyn. range of the mic. amplifier (A-weighted): 132 dB
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Supply voltage (P48, IEC 1938): 48 V ± 4 V
Rated impedance: 50 ohms
Current consumption (P48, IEC 1938): 3.5 mA
Rated load impedance: 1 kohms
Matching connector: XLR3F
Equivalent noise level, CCIR1): 21 dB
Weight approx.: approx. 260 g
Equivalent noise level, A-weighted1): 12 dB-A
Diameter: 52 mm
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 73 dB
Length: 116 mm
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
