Hollyland Solidcom M1-4B

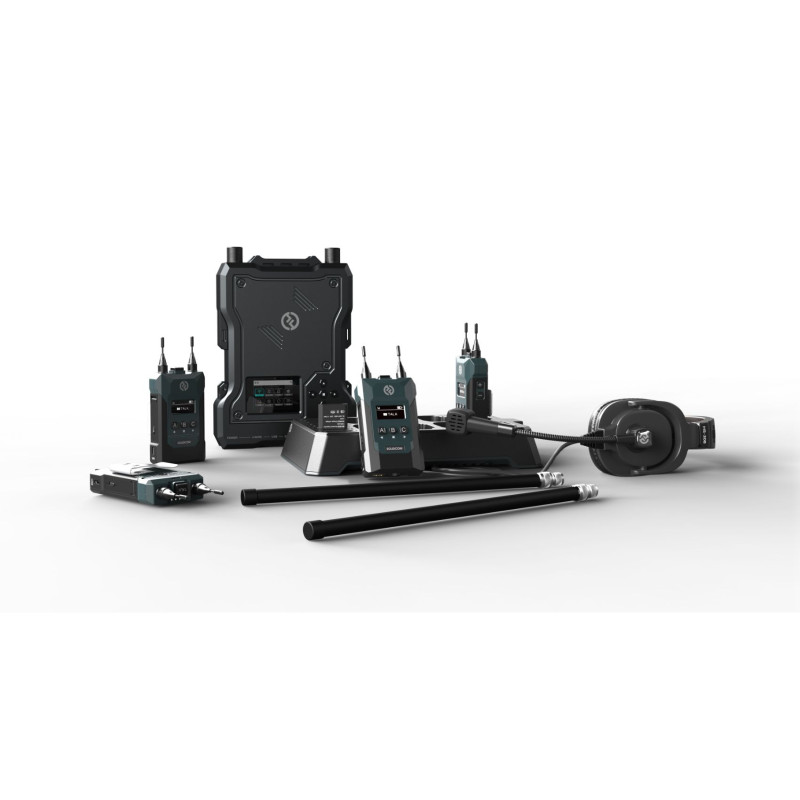

Hollyland Solidcom M1 Full Duplex Wireless Intercom System (4 Belt Packs)

This wireless intercom setup supports up to 4 team members, providing each of them with a wireless waist pack and a single-ear wired professional LEMO headset.
Ideal for small to medium sized events (approximately 100 to 1000 guests), such as a concert, church function or exhibition, the Solidcom M1 system works to provide clear, conversational communication without interference and offers simple setup based on apps or web pages.

1.9GHz full-duplex transmission
To avoid interference with other devices, the M1 intercom system communicates on the 1.9 GHz spectrum and offers full-duplex conversations.
With full duplex, you can talk to other team members as you would on the phone, with each party able to speak and listen at the same time.

Long range communication
The integrated panel antenna on the M1 Base Station can provide one-way transmission to belt packs up to 1312' away in front of the panel and another 164' to the rear (line of sight). Auxiliary external FRP antennas can provide 360° reception up to a range of 984'.

Sidetone function
When you're alone at an event and need to make sure your headset and pouch are transmitting correctly, you can use the sidetone feature to hear yourself through the headset.
This helps ensure that your microphone is picking up your voice, that your voice volume is set correctly, and more.

Cascade connection
If you need to expand your team's coverage and support, you can use the daisy chain feature to join this system to a second Solidcom M1 intercom system, linking both base stations together.

° 4-channel communication
° POE base station power supply
° Connection for 3.5mm headphones and LEMO on waist packs
° Charging station for all 4 baby carriers
° Interfaces for 2-wire and 4-wire door phone systems
° Removable Li-ion batteries
° Group conversation mode
° App and website based system configuration

System
Number of headphones included: 4x single-sided headphones
Number of transceivers included:
4x fanny packs
1x base station

Wireless connectivity
Wireless technology: digital 1.9GHz
Number of RF channel frequencies: 8
RF Bandwidth Up to 1.72 MHz
Maximum number of transceivers for band 2
Wireless Modulation: GFSK
Duplex mode: Full duplex (FDX)
Approximate RF Sensitivity: -93dBm
Operating Range: 1312' / 399.9m (RF)
Number of channels: 8
Users per system: 4

Antenna
Base station: 2 x external, detachable
Waist bag: 2 x external, fixed
Number of charging ports: 1
Power Consumption: 3W (transmitter)

Headphones
Headset Design: Over-Ear (Circumaural)
Headset Connection / Wearing Style: Headband
Number of earphones: single earphone (left side)
Controls/Mic Position Controls: Bodypack
Microphone: adjustable boom
Frequency Response: 200Hz to 7kHz

Microphone
Microphone location: left side
Audio to Source Connector: 1 x 1/8"/3.5mm
1 x LEMO (unspecified type)

Battery
Battery Chemistry: Waist Bag:
Lithium Ion Polymer (LiPo)
Capacity (mAh): 1500mAh

Environmental
Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: -4 to 140°F / -20 to 60°C

Dimensions
Base Station: 10 x 7.1 x 1.9" / 255 x 180 x 48.5mm
Pouch: 4.1 x 2.6 x 0.9" / 105 x 65 x 22.4 mm (each)
Base Station Weight: 3.4lbs / 1560g
Waist Bag: 7.1oz / 200g (each)
Packaging information
Package Weight: 37.5lbs/17.01kg
Box size: 24.75 x 20.5 x 13" / 63 x 52 x 33cm
