System FSB 10 Mk II ENG CF GS

Sachtler FSB 10 Mk II 100mm Touch & Go Head with ENG 2 Carbon Fiber Tripod System (Ground Spreader)

Set up, move fast, and go quickly from tripod mounted to handheld with the Sachtler FSB 10 Mk II 100mm Touch & Go Head with ENG 2 Carbon Fiber Tripod System.
This bundle includes the Sachtler FSB 10 Mark II fluid head, the ENG 2 carbon fiber tripod legs, a ground spreader, and a padded carry bag.
Supporting cameras weighing up to 35.3 lb/16 kg, the system allows you to follow the action when shooting on hard or smooth terrain.
The ground spreader folds up inside the carbon fiber legs, so you can just grab and go, and the included padded bag holds your gear when you aren't shooting.

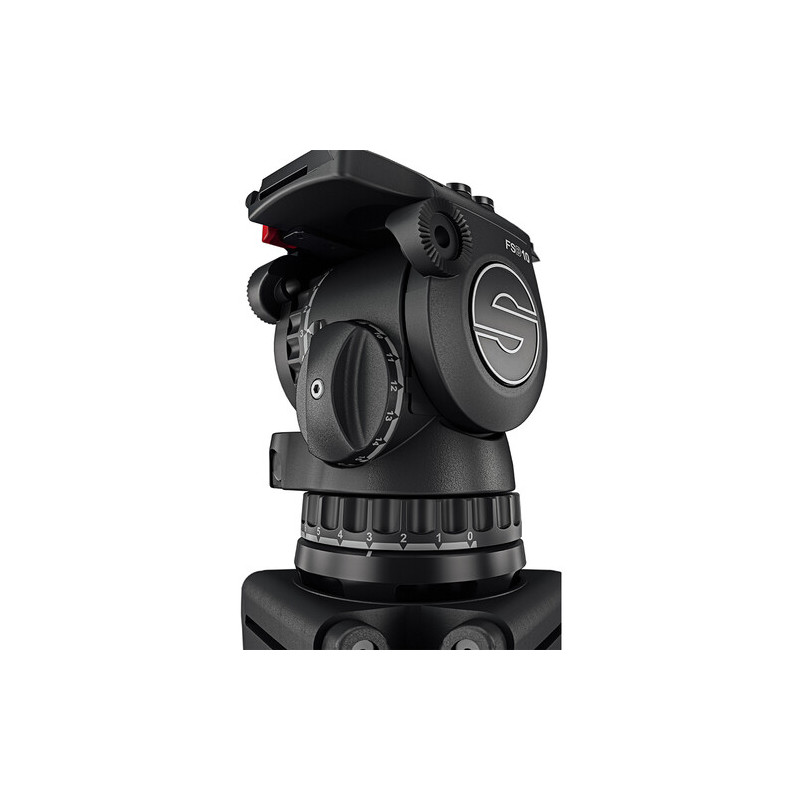

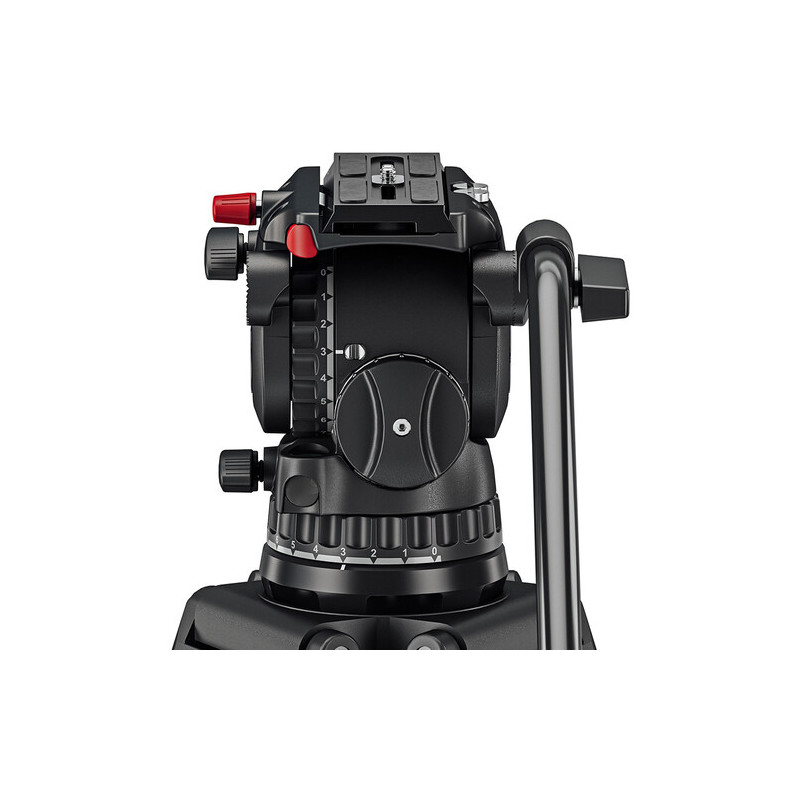

Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)
Create fluid and smooth pans and tilts while supporting a wide range of camera heights with the precision-made Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism, which supports payloads up to 26.5 lb/12 kg.
Designed to accommodate digital cinema-style cameras, the head offers Sachtler's Sideload mechanism with a sliding range of 4.7"/12 cm.
It also features a 15-step counterbalance along with horizontal and vertical 7-step drag controls.
In addition, a zero setting on the pan and tilt drag controls allows free movement of the head, useful for whip pans and tilts.

Suitable for interior and exterior work, the head offers consistent and reliable operation from -40 to 140°F, and it features a 100mm bowl with an integrated flat base, allowing you to mount the head on legs and supports with either a 100mm bowl or a flat base fitting.
The head features a bubble level with a prism system, so you can set your head to level while seeing the bubble level from above or to the side.
The bubble level is illuminated for easy leveling in poor light conditions.
A pan handle that can be mounted on either side of the head is also included.

Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs/40 kg
The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity.
Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum.
It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod.

The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb/40 kg., and with a weight of only 5.3-lb/2.40 kg it's extremely lightweight, solid and stable.

Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums.
It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other.
Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader.
Fits all 100mm bowl tripods (except DA-100 Short tripod).

Sachtler ENG 2 Padded Bag
The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35"/89 cm long.
The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.

Construction
° Water-resistant Cordura nylon
° Padded interior
° Zipper closure

Carrying options
° Interlocking handles
° Attached, adjustable shoulder strap

Compatible with
° Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
° Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

Sachtler FSB 10 Mark II Fluid Head with Sideload Mechanism (100mm)
Camera Plate
Camera Plate Features: Quick Release, Sliding Balance Plate
Camera Plate Type: Sideload Plate S
Camera Mounting Screw: 1 x 1/4"-20 Male with Locating Pin
Balance Plate Sliding Range: 4.7" / 120 mm
Plate Dimensions: 5.5 x 2" / 14 x 5 cm

Head
Base Mount:
° 100 mm Half Ball
° Flat Base
Counter Balance: Incremental 15-Step Plus 0
Included Pan Handle Length: 16.77" / 42.6 cm
Bubble Level: 1 x Illuminated

Pan & Tilt
Drag Control
° Tilt: 7-Step Plus 0
Drag Type: Fluid
Vertical Tilt: +90° to -70°
Panning Range: 360°
Independent Pan Lock: Yes
Independent Tilt Lock: Yes

General
Load Capacity: 0 to 26.5 lb / 0 to 12 kg
Operating Temperature: -40 to 140°F / -40 to 60°C
Weight: 6 lb / 2.7 kg

Sachtler CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs/40 kg
General
Head Mount Type: 100 mm Bowl
Maximum Working Height: 59" / 149.86 cm
Minimum Working Height: 15.5" / 39.37 cm
Closed Length: 27.2" / 69.088 cm
Materials: Carbon Fiber
Weight: 5.3 lb / 2.41 kg

Legs
Leg Lock Type: Flip Lock
Leg Sections: 3
Feet Features: Spiked
Spreader: (Not Included)

Sachtler Spreader SP 100 On-Ground Tripod Spreader - for all 100mm Bowl Tripods (Except DA-100 Short Tripod)
Packaging Info
Package Weight: 1.9 lb/ 862 g

Sachtler ENG 2 Padded Bag
Carrying/Transport Options: Connecting Handles, Shoulder Strap
Type of Closure: Zipper
Exterior Material: Cordura, Nylon
Padded: Yes
Interior Dimensions
° H: 7.9 x W: 8.5 x L: 35.4" / H: 20.1 x W: 21.6 x L: 89.9 cm
Weight: 3.6 lb / 1.6 kg
