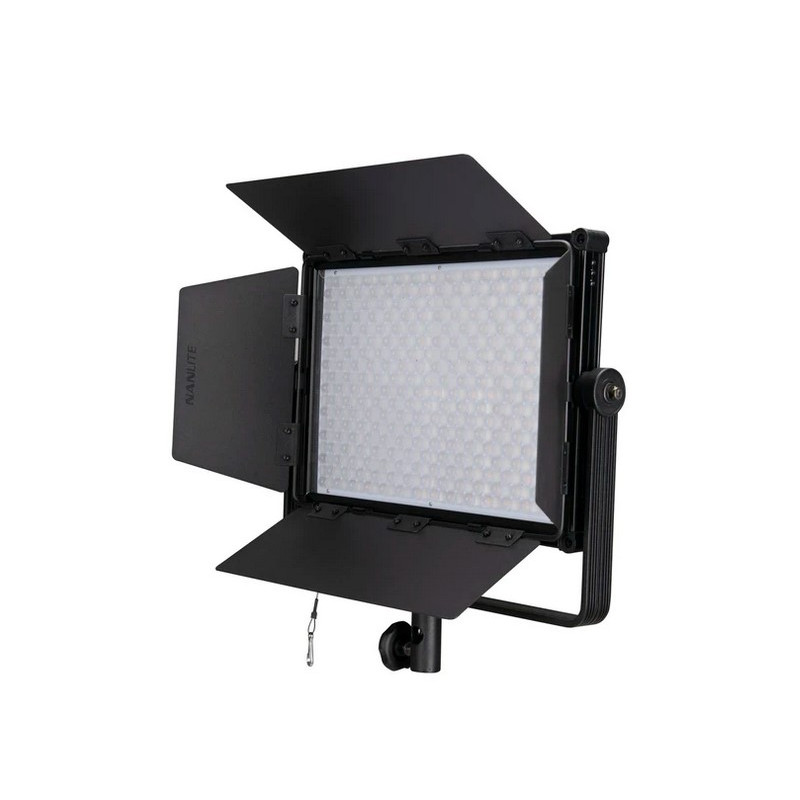

Nanlite MixPanel 60

The Nanlite MixPanel 60 panel uniquely combines three LED light sources into one compact structure, giving you the ability to switch between bright light, soft light and light at the touch of a button. Combined with a bright light output, dimmer of 0-100%, a CRI of 98, a TLCI of 95, green / magenta dimming, 43 jelly presets in two light sources (3200K and 5600K) and 9 special effects; MixPanels is one of the most versatile RGBWW LED panels on the market.

The Nanlite MixPanels are able to switch from a "traditional" multi LED panel for hard light, to a diffused SMD LED panel for soft light and to an RGB panel for colorful and creative effects at the touch of a button.

When using hard light in normal mode, the MixPad 60 mode outputs 4980 Lux @ 1m 5600K. When switched to boost mode it emits 6600 Lux at 1m. Plus, with a 100% to 1% dimmer you can use the MixPanel 60 in any situation without adding diffusers or ND jelly.

In addition, the MixPanel 60 features a CRI 98, a TLCI of 95 plus Green / Magenta adjustment in CCT mode, which will mean that the color reproduction is accurate.
The MixPanel offers a selection of 43 jelly presets in two light sources (3200K and 5600K) which include 5x CTOx 5x CTB and 33x Calcolor. In addition, with 9 pre-programmed and adjustable special effects, the MixPanel allows you to mimic lighting scenarios that might otherwise be difficult to recreate such as CCT loop, flash, storm, siren, TV screen, paparazzi and the candle / fire.

Optimized for use in the studio or any outdoor, the MixPanel 60 can work with the included AC adapter or 14.8V V-Mount batteries (not included), so you can use it in place


Technical details:
- Color temperature: 2700-7500K
- CRI: 98
- TLCI: 95
- Dimmer: 0-100%
- 7500K lumen output:
5808 lumens
Lux @ 1m 5600K Boost and soft light mode: 935 lux
Lux @ 1m 5600K Boost and bright light mode: 6600 lux
Lux @ 1m 3200K Boost and soft light mode: 892 lux
Lux @ 1m 3200K Boost and bright light mode: 6015 lux
- Power source: DC15V / 6A
- Maximum absorption: 60w
- Battery: Sony V-Mount 14.8v battery (not included)
- Battery life: at 100% brightness (approx.): 2 hours (14.8v Sony V-Mount 150wh)
- Mounting: 5/8 " receiver
- Gel emulation: 43 gel presets in two light sources (3200K and 5600K) which include 5x CTOx 5x CTB and 33x Calcolor
- Special effects: CCT loop, flash, storm, siren, TV screen, paparazzi and candle / fire + others.
- Green / Magenta Adjustment: Yes in CCT mode
- Dimensions (L x W x H): 43.18 x 7.62 x 35.56 cm
- Weight: 3.31 kg
