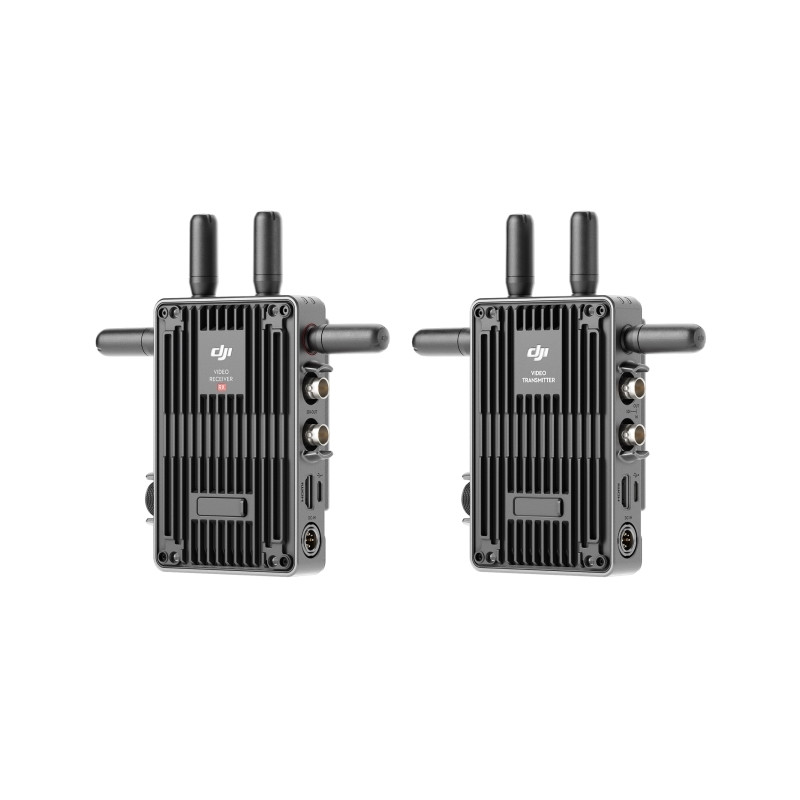

Dji DJI Transmission TX/RX Combo

DJI Combo Video Transmitter & Receiver System, Power, SDI & USB-C Cables - DJVT03

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Transmission Standard TX/RX Combo from DJI.
The combo includes a transmitter and a receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies.
Optional high-gain antennas can be purchased to boost the signal quality and distance.

The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes.
It allows you to transmit simultaneously to multiple receivers, including the High-Bright Remote Monitor.
The system also can be used with talkback via the USB-C ports and optional headsets.
The units can be powered via a WB37 battery, L-series battery, or a DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.

° DJI Wireless Video Transmitter
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Wireless Video Transmitter from DJI.
The transmitter pairs with a separately available monitor/receiver and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies.
Optional high-gain antennas can be purchased to boost the signal quality and distance.

The transmitter supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes.
It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance.
The transmitter can be powered via an optional L-series battery, WB37 battery, or its DC power input, or it can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.

° DJI Wireless Video Receiver
Receive high-definition video from over 3 miles (line-of-sight) away from your DJI video transmitter with this Wireless Video Receiver from DJI.
The receiver pairs with a separately available transmitter and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. The receiver also supports talkback/voice calling between ends using the USB-C ports and optional mics.

The receiver supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes.
It allows you to simultaneously receive alongside other receivers such as the High-Bright Remote Monitor, and the separately available transmitter can transmit to unlimited receivers in broadcast mode with a slightly lower performance.
The receiver can be powered via an optional L-series battery, an optional WB37 battery, or its DC power input.

° DJI WB37 Battery Charging Hub (USB Type-C)
Keep your WB37 batteries charged with the WB37 Battery Charging Hub from DJI.
This hub uses a USB Type-C port for charging.

° DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh)
This WB37 LiPo Battery Pack for Select DJI Accessories from DJI has a 4920mAh capacity that provides enough power to run a CrystalSky monitor for up to 4-6 hours or a Cendence remote controller for up to 4 hours.
If you have a 5.5" CrystalSky, then you will get between 5-6 hours of battery life, while 7.85" CrystalSky monitors will get 4-5 hours.
It's also compatible with other DJI products, such as the Transmission Combo and FPV remote.
DJI has engineered this battery to charge quickly and have an excellent discharge rate at low temperatures.

DJI Wireless Video Transmitter
Inputs / Outputs
Antenna I/O: 2 x RP-SMA Female
Video I/O:
° 1 x BNC (3G-SDI) Input
° 1 x HDMI 1.4 Input
° 1 x BNC (3G-SDI) Loop Output
Embedded Audio: HDMI/SDI
Audio I/O: None
Power I/O:
1 x USB-C Input
1 x Barrel Input
Encryption: 256-Bit AES

Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
# of Channels: 23
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies:
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
° DFS Frequencies:
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency: 68 ms
RF Power: < 33 dBm
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth: None
Mobile App Compatible:
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support
Video Format:
° HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format: 16-Bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No

General
Dimensions: 5 x 3.4 x 1" / 127 x 87 x 26 mm
Weight: 12.3 oz / 350 g

DJI Wireless Video Receiver
Inputs / Outputs
Antenna I/O: 2 x RP-SMA Female
Video I/O:
1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
Embedded Audio: HDMI/SDI
Audio I/O: None
Power I/O:
1 x USB-C Input
1 x Barrel Input
Encryption: 256-Bit AES

Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
# of Channels: 23
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
° DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency: 70 ms
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth: None
Mobile App Compatible:
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support
Video Format:
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format:
16-Bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No

General
Dimensions: 5 x 3.4 x 1" / 127 x 87 x 26 mm
Weight: 12.3 oz / 350 g

DJI WB37 Battery Charging Hub (USB Type-C)
Quantity : 1
Power Source: USB (Not Included)
Power I/O: 1 x USB Type-C Input
Weight: 5.3 oz / 150 g

DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh)
Compatibility:
DJI CrystalSky / High-Bright Remote Monitor / Cendence Remote Controller / Video Transmitter / FPV Remote Controller / Transmission
Battery Chemistry: Lithium-Ion Polymer (LiPo)
Battery Capacity: 4920 mAh / 37.39 Wh
Battery Configuration: 2 S / 7.6 V
