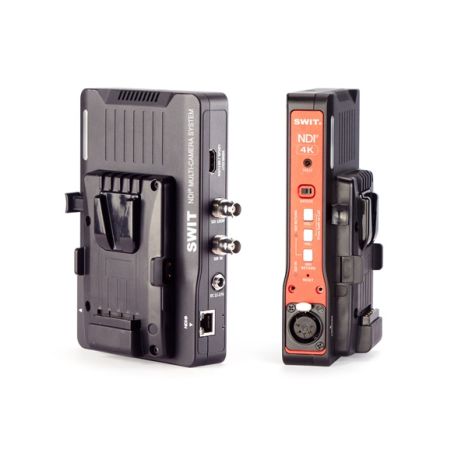

Swit EC-N200-4K - NDI Codec Camera Adaptor

Swit NDI Codec Camera Adaptor with 4K60p supported

- Encode camera 12G-SDI to high bandwidth NDI®
- Decode PGM NDI® source to HDMI output
- Local video and PGM return video switching
- Intercom with ET-N80 control panel
- Intercom mute, call, headphone connector
- On-board TALLY and external TALLY light
- DC 11-17V 1.5A and V-mount power input
- Support 42-57V 0.5A PoE power input
- Provide clamp to fix RJ45 network cable
- 15mm rod rail system to install ENG cameras
- Webserver configuration and firmware update

° NDI EFP Production System
EC-N200-4K is the camera adptor of Swit NDI EFP Multi-camera production system.
The camera adaptor will encode camera SDI up to 12G to igh bandwidth 4K NDI, and also decode PGM NDI source to display as return video.
The system has on-board and exteral TALLY light and support full duplex intercom between cameramen and director.

° Full Duplex Intercom
The camera adaptor EC-N2004K supports 5-pin headset connection, and working together with SWIT ET-N80 Intercom control panel, the system supports full duplex intercom between director and cameramen.
You can control intercomvolume and initiate he callto director on the camera adaptor.

° Interdace
The EC-N200-4K camera adaptor supports up to 12G-SDI input and loop out, high bandwidth 4K NDI connected to the network, and HDMI monitor output for local video and return video.
The camera adaptor provides 5-pin XLR headset connector and 3.5mm jacj for external TALLY light, powered by V-Mount or Gold Mount, o through 5.5mm DC-IN, or powered by PoE.

° TALLy Lights
There's an on-board Bi-Color TALLY light to display Red (PGM); Green (PVW).
The package also provides a external TALLY light to install on the front of the camera, for the anchor.

° Return NDI Video Switch
The camera adptor also decode the PG NDI source and output through HDMI.
You can use any monitors with HDMI to display local video and rreturn video in Pic-in-Pic mode, or full screen return video mode, by press the return button on the camera adaptor.

° RJ45 Cable Clamp
the camera adaptor provides a clamp to fix any standard RJ45 cables, which nsure the reliability of connection during video productions.

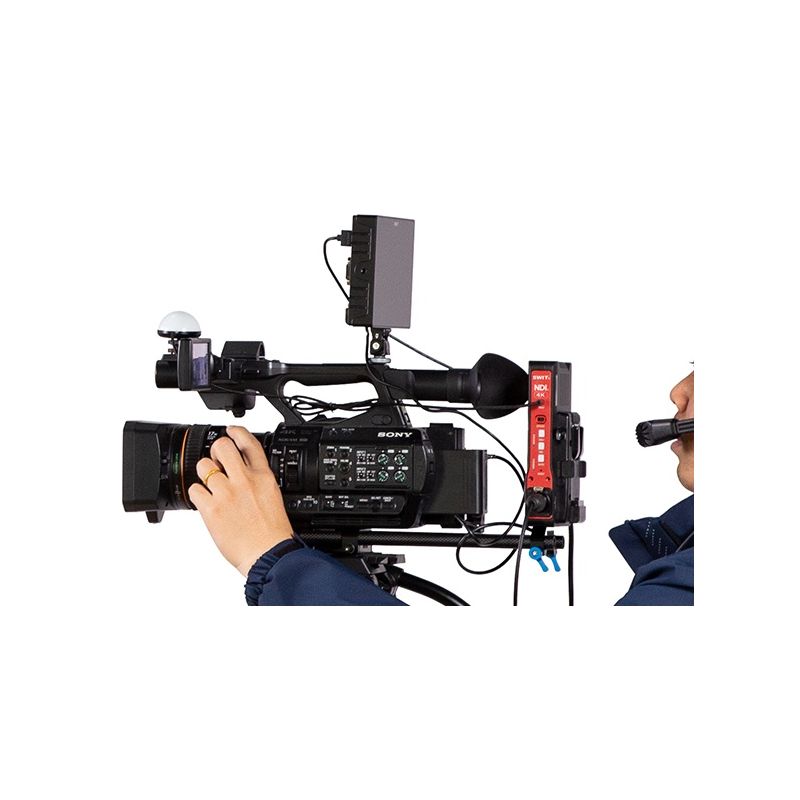

° 15mm Rod System
The EC-N200-4K camera adaptor packageprovides the 15mm Rod system to install between camera and tripod.
The Rod system is universally compatible with all kinds of ENG cameras and video tripods, and easy to install.

Video Input: 12G/6G/3G/HD/SD-SDI ×1
Video Output:
- 12G/6G/3G/HD/SD-SDI ×1
- HDMI ×1
- High bandwidth NDI ×1
SDI Format:
- 2160p (60/50/30/29.97/25/23.98);
- 1080p (60/59.94/50/30/29.97/25/23.98);
- 1080i (60/59.94/50);
- 720p (60/59.94/50)
NDI Format:
- 2160p (60/50/30/29.97/25)
- 1080p (60/59.94/50/30/29.97/25)
- 1080i (60/59.94/50)
- 720p (60/59.94/50)
HDMI Format:
- 1080p (60/59.94/50/30/29.97/25/23.98);
- 1080i (60/59.94/50)
- 720p (60/59.94/50)
DC/Battery Input: 11-17V, 1.5A
PoE Power Input: 42-57V, 0.5A
Power Consumption: 16W
Working Temperature: 0-40°C
Dimension: 139.23×176×52.5mm
Net weight: 742g
