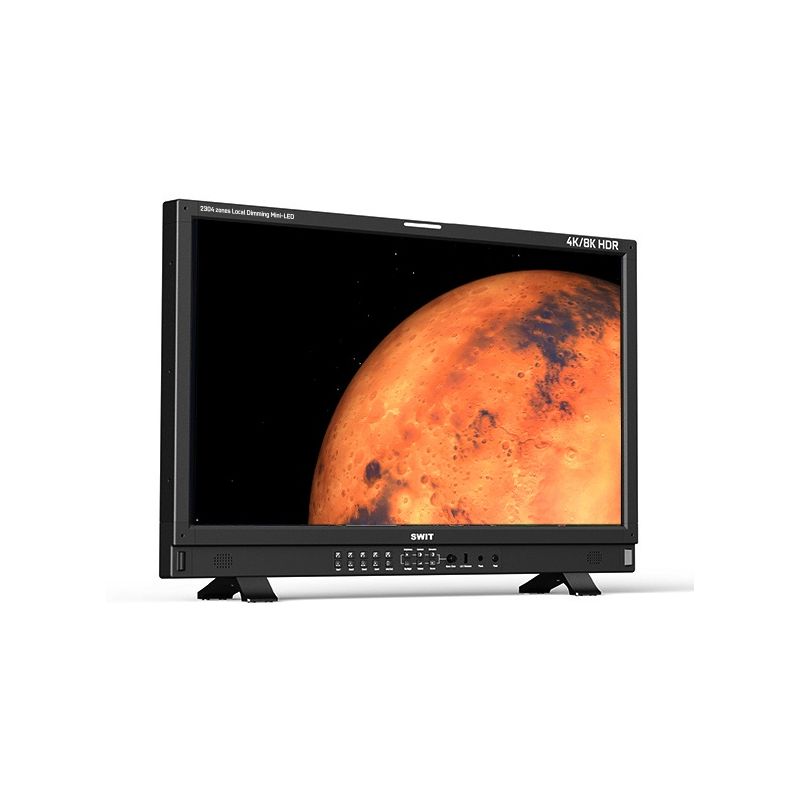

Swit HDR Studio Monitor BM-U325MD

Swit 12G-SDI 4-in 4-out, HDMI 2.0 in, Optional HD ST2110 SFP input Monitor - Black

31.5-inch 4K/UHD 3840×2160 resolution
2304 zones local dimming MINI-LED
1500nits, 1,000,000:1 contrast HDR
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
12GSDI via SFP Fiber input (Optional)
ST2110 IP via SFP Fiber input (Optional)
SFP Fiber 12G input converted to 12GSDI out
4 inputs Quadview, any 2 inputs PBP/PIP view
HLG/PQ/S-log3 HDR, Payload ID auto setting
3DLUT Auto Self-calibration without PC
Audio/Video 0 latency for post production
Built-in Multi camera Delog Luts to 709/HLG/PQ
User 3DLUTs upload via USB
Waveform / Vector / Histogram / Eye pattern
Focus assist / False color / Zebra
16-ch audio meters / Lissajous
5.1 & 7.1 surround sound phase pattern
IP webserver remote control

SWIT released the new 4K HDR professional monitor with SWIT's unique Mini-LED panel tech, which features 1500nits high bright and 1,000,000:1 contrast ratio, full viewing angle to display brilliantly bright and impeccably dark HDR contents.
The monitor has 4x 12G-SDI inputs and supports 4K ST2110 IP for broadcast productions, as well as film post productions.

° SWIT unique 2304 zones local dimming Mini-LED panel
31.5-inch 3840×2160 UHD, 2304 local dimming zones.
Each zone has 4 SMD LEDs, and takes 60×60 pixels, about 1.1×1.1cm area.
Between the display panel and backlight, there's a dedicated Quantum Dot Layer (QLED tech), to excite pure color and raise color gamut range of the screen.

° Eliminates Halo Effect
The common Mini-LED panel has less local dimming zones and will display halo effect around the high bright pixels.
SWIT dedicated Mini-LED panel has more than 2304 local dimming zones, with precise backlight control and grealy eliminate halo effects.

° SWIT AI compensator Algorithm
The common Mini-LED panel can't reproduce image tiny pixels in high backlight intensity area, and always lost image details.
SWIT's innovative artificial intelligence tech, massive learning of typical video images, enhancing and compensating for the pixels, to recover all tiny details over high intensity backlight area.

Color Gumut: 100% Rec.709; 100% DCI-P3; 76.8% Rec.2020.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video productions.

° 4K/8K UHD inputs
The BM-U325MD and BM-U326MD support Single link 4K and Quad link 4K & 8K inputs, both SQD and 2SI modes.

° Integrated 4K ST2110 IP
BM-U326MD has built-in ST2110 IP receiver, support up to 4K 60p, and provide 2×SFP28 25G Base slots for backup, with clean switch and hitless failover.
Support ST2110-20/21/22/30/40, and RJ45 LAN connection IP webpage configuration.

° Quadview, PBP and PIP
4x input sources mixed formats quadview with independent Waveforms/Audio meters/Gamma/Color Gamut/UMD settings, and 2x input sources Pic-by-Pic or Pic-in-Pic display.

° HDR/Color Gamut selection, Payload ID auto setting
Gamma 1.0/1.8/2.2/2.4/2.6 SDR or HLG/PQ/Slog3/2.4 HDR; Rec.709, DCI-P3, Rec.2020 selection; Payload ID auto set input range, color space, HDR/SDR, color gamut, etc.

° Multi Color Gamut & EOTF Viewing
Display 1 input source by 4 different HDR/SDR and color gamut simultaneously (PBP mode or Quad mode selection).

SWIT BM-U325MD / BM-U326MD 4K Mini-LED HDR monitors, high bright and high contrast ratio, 4×12G-SDI 8K input and 4K ST2110 IP input, thinner and light weight, the professional choice for broadcast system integration, HDR editting, color grading and post productions.

LDC Performance
Size: 31.5 "
Display area: 697.3×392.2mm
Resolution: 3840×2160
Aspect ratio: 16:9
Brightness: 1500nits
Contrast: 1,000,000:1
Color depth: 1.073G colors, 10-bit
Signal process: 18-bit
Viewing angle: 178°(H) /178°(V)

Input
BNC ×4: 12G/6G/3G/HD/SD-SDI input
HDMI® ×1: HDMI® 2.0 input
SFP ×1: Optical Fiber input (By optional SFP adaptor)
RS485 ×1: TSL 3.1/4.0 UMD input
RS485 ×1: GPI (Tally) input
RJ45 ×1: 1000M Ethernet input for Webserver IP control

Output
BNC ×4: 12G/6G/3G/HD/SD-SDI loop output
RS485 ×1: TSL 3.1/4.0 UMD output
Analog audio: 3.5mm headphone and speaker

Video Format
° SDI 1/2/3/4:
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
° Quad Link 4K (Each channel)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
° Quad Link 8K (Each channel)
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
° HDMI
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General
Input voltage: AC 100-240V, 50/60Hz
Power consumption: = 200W
Working temperature: 0°C~+50°C
Working humidity: 10%~90%
Storage temperature: -15°C~+60°C
Storage humidity: 10%~90%
Dimensions: 753.5×490×111.1mm
Net weight (main body): Net 16.8kg; With package 22.4kg
