Système FSB 8 75/2 AL HD MS Mk II - 0-12

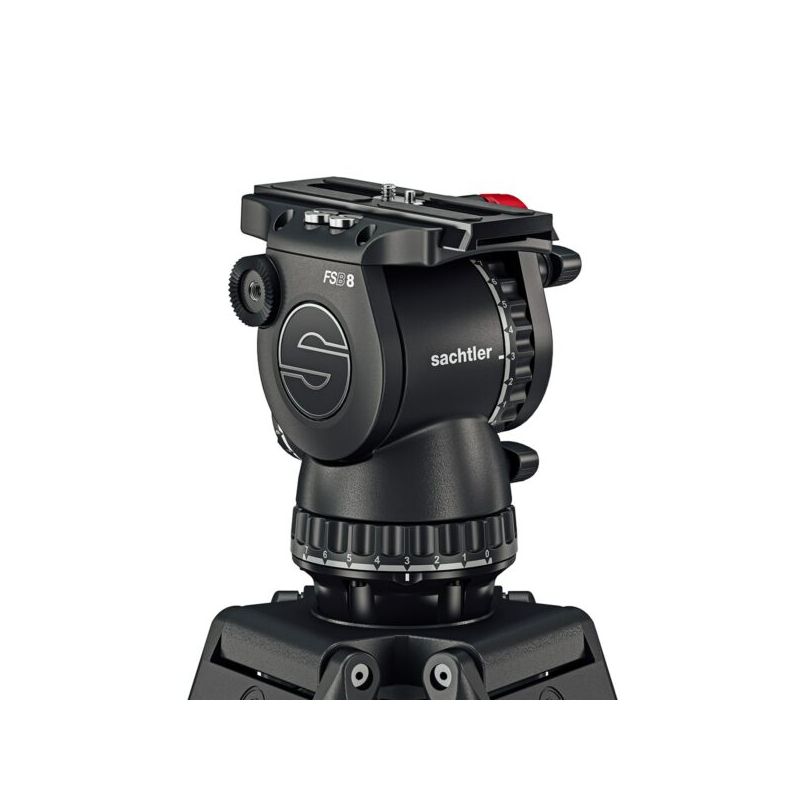

Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.

The FSB 8 features Speedbalance technology to finely balance any camera payload from 0kg up to 12kg (26.5lbs). The snap and go side loading mechanism with a sliding range of 120mm (4.7in) makes mounting and positioning accessorised cameras simple. An illuminated PrismBubble is visible from any height – day or night – to help ensure your setup is level.

Create precision pans with smooth starts and soft stops. Patented Sachtler drag always gives you subtle and smooth movement. Seven horizontal and vertical drag settings help you to tune the drag to your payload.

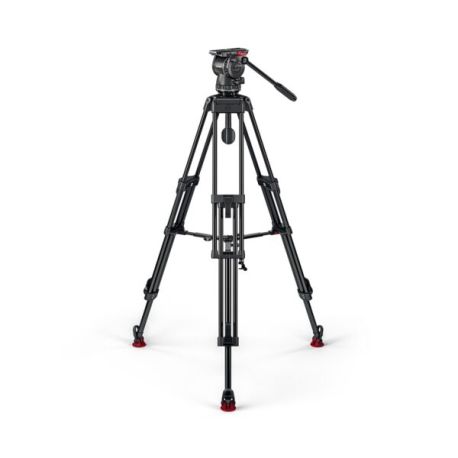

The System includes a 2-stage heavy duty aluminium 75mm tripod. The detachable mid-level spreader provides stability even on rough ground and a padded bag is included for transportation.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance. With no variation in performance in the widest range of temperatures and environments, FSB is the first choice for busy operators.

Bowl Size   75 mm with integrated flat base
Payload   12 kg
Counterbalance   15 + 0 counterbalance steps
Drag   7 + 0 drag settings
Weight   6.3 kg
Material   Aluminium
Tripod Stages   2
Pan Bar Count   1
Sliding Range   12 cm
Tilt Range   +90° to -70°
Temperature Range   40°C - to 60°C
Transport Length   89 cm
Height With Mid Spreader   79 cm
Camera Plate   Sideload
Pan Bar Type   pan bar DV #0992SP
Level Bubble   Yes, Prism Bubble

Dans la boite :

    S2069-0001 - FSB 8 Mk II
  S2034-0001 - Tripod 75/2 AL HD
  S2081-1000 - Mid-level spreader 75 HD
  SSP12P0150 - Rubber Feet 75
  9116 - Padded bag 75
