DJI Focus Pro All-In-One Combo

DJI Combo Focus Pro LiDAR+Focus Pro Grip+Focus Pro Motor+Focus Pro Hand - DJFOC1

The Focus Pro All-In-One Combo from DJI equips you with all the tools you need to achieve precise FIZ control over your manual camera lens.
The combo includes a LiDAR unit, Focus Pro Motor, Focus Pro Grip, and a hand unit for more accurate, distant, and intelligent autofocus.
A carrying case holds all the components for travel to your next shoot.

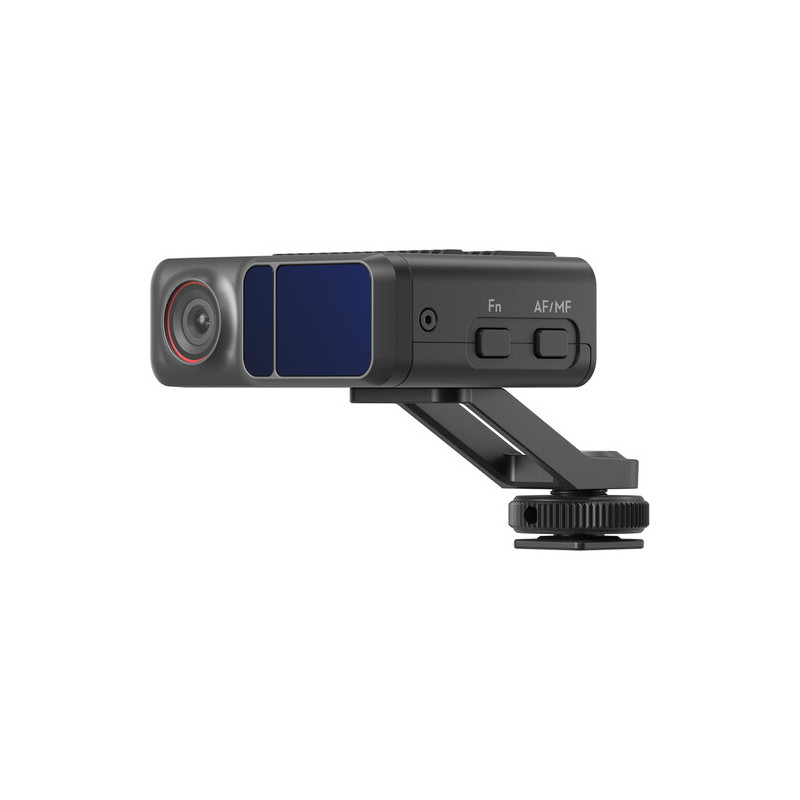

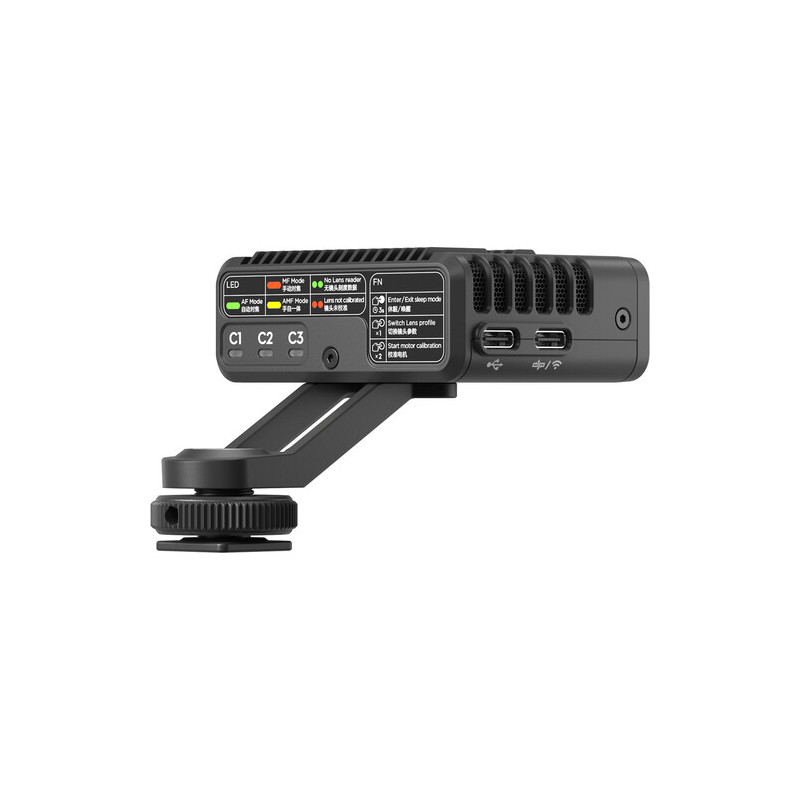

° DJI Focus Pro LiDAR
Designed for both the RS 3 Pro and RS 4 Pro gimbal stabilizers, the DJI Focus Pro LiDAR unit makes achieving intelligent autofocus intuitive and easy for solo cinematographers.
The rangefinder unit makes focusing on objects in motion a breeze thanks to its expanded 76,800 ranging points, 30 Hz refresh rate, and 65.6' maximum detection area.
This allows it to support both wide-angle and telephoto lens configurations.
The unit features a built-in camera with an equivalent 30mm focal length and 70° field of view to ensure accurate focus.
Toggle between wide-angle, telephoto, and focus spot modes depending on the needs of your shoot.
ActiveTrack Pro is activated when paired with the RS 4 Pro gimbal for improved recognition and tracking performance with multiple subjects or subjects at a distance.
It is compatible with the Focus Pro Motor to provide accurate cinema-style autofocus.
The LiDAR unit mounts on your RS 3 or 4 Pro series gimbal or camera via cold shoe or 1/4"-20 thread, and it is powered via a USB-C power cable.

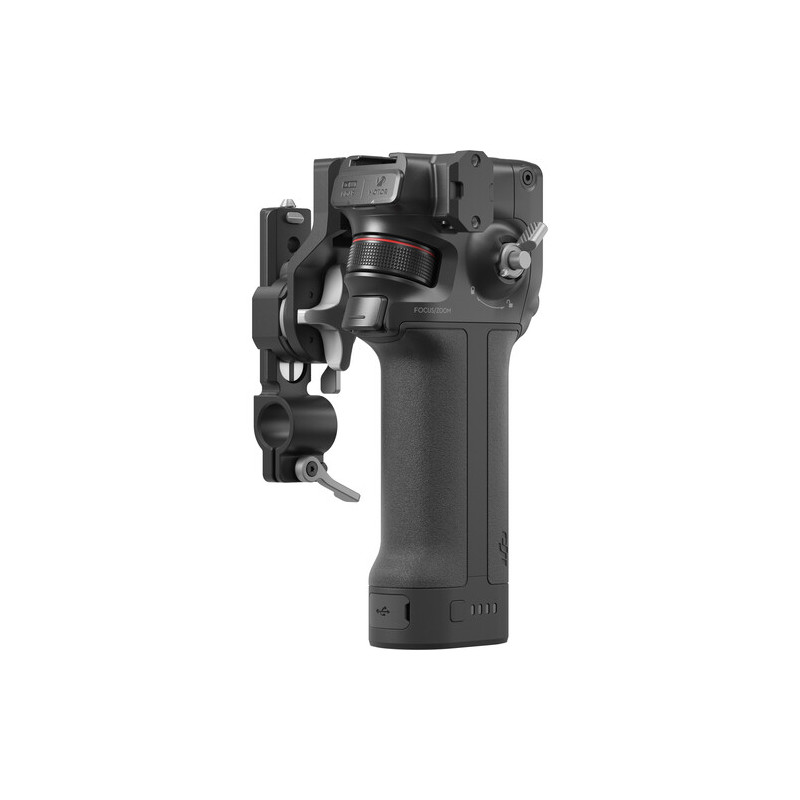

° DJI Focus Pro Grip
Attach this DJI Focus Pro Grip to either side of your DJI R3 Pro or RS 4 Pro gimbal and control your Focus Pro Motor configuration for precise FIZ.
The grip has an integrated 1.8" touchscreen display, front dial, mode button, and record buttons for intuitive control over your camera and lens operations.
Toggle AMF mode to engage autofocus, causing the front dial to rotate simultaneously and allowing cinematographers to visually observe the focus status on the monitor and via tactile feedback.
Manual mode can then be engaged and disengaged intuitively.
Three USB-C ports facilitate communication between the Focus Pro LiDAR unit, Focus Pro Motor, and your camera. 2.4 GHz and Bluetooth communication allow for wireless transmission. Use the built-in NATO clamp and included adapters to attach the grip to either side of your gimbal configuration.
A built-in battery keeps the grip running for 2.5 hours at a time, and it can recharge via PD fast charging technology using the USB-C port.

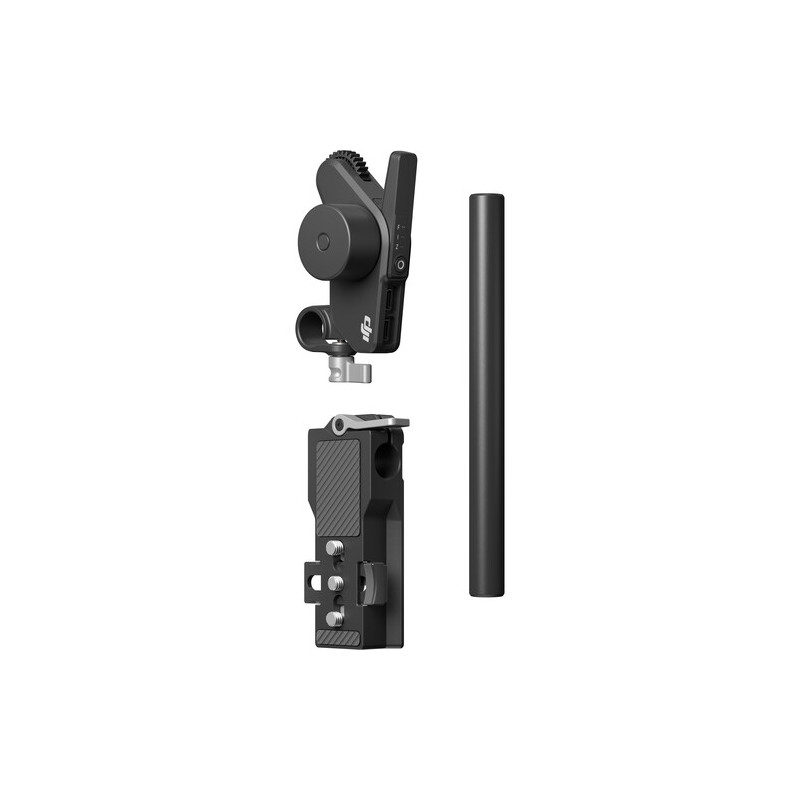

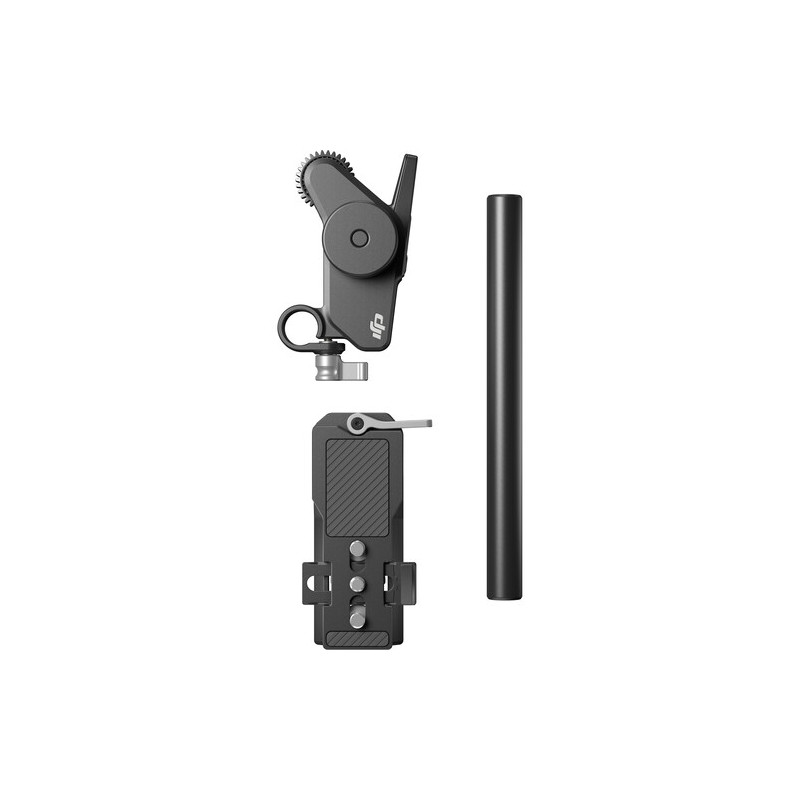

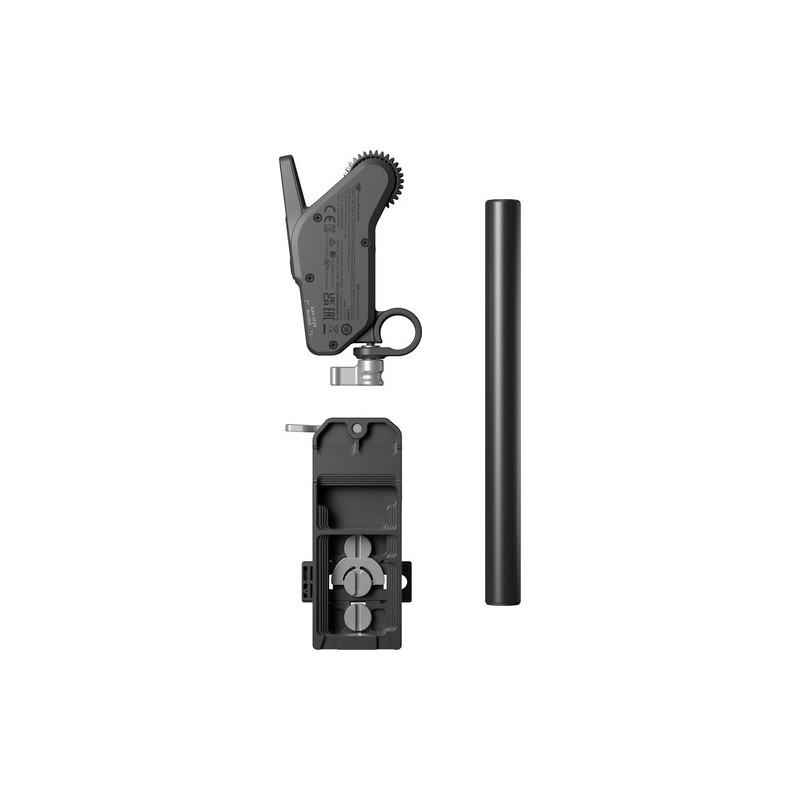

° DJI Focus Pro Motor
Add focus, iris, or zoom control to your camera when mounted on the select RS gimbal stabilizers with the DJI Focus Pro Motor.
This updated motor features a 30% speed increase over the previous model with 300 gear teeth and 10ms low latency.
Control the motor via 2.4 GHz transmission technology from up to 524.9' away.
When used in zoom control mode, the Focus Pro can perform Power Zoom for PZ lenses, Clear Image Zoom, and external focus motor zoom for precise focusing.
Its updated 15mm rod mount makes it more universally compatible with camera mounting configurations.
Pair two Focus Pro Motors with the DJI RS 4 Pro to adjust focus with the gimbal's onboard dial and zoom with the onboard joystick for efficient lens control.

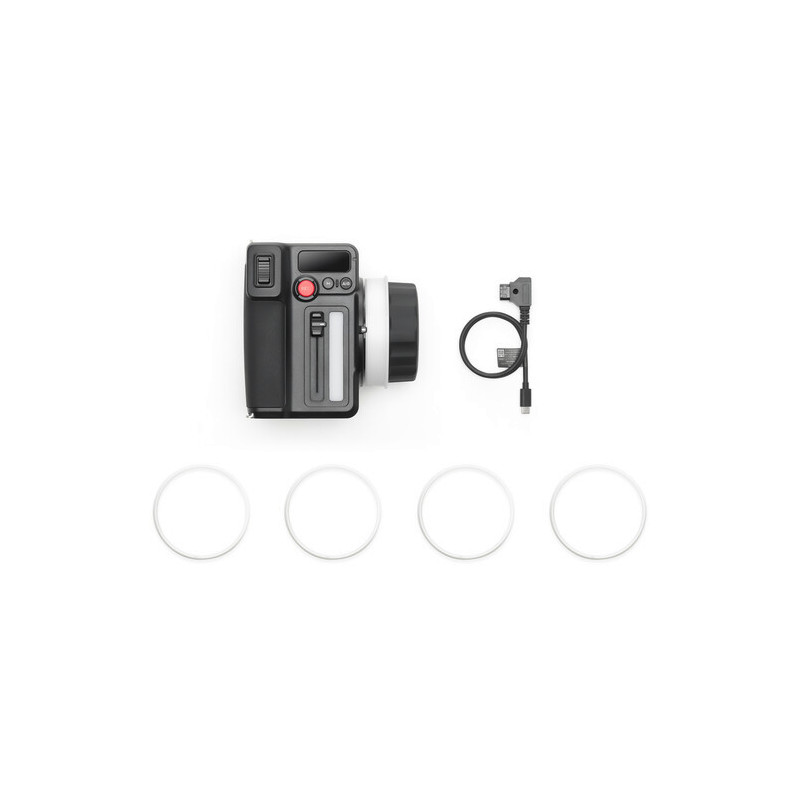

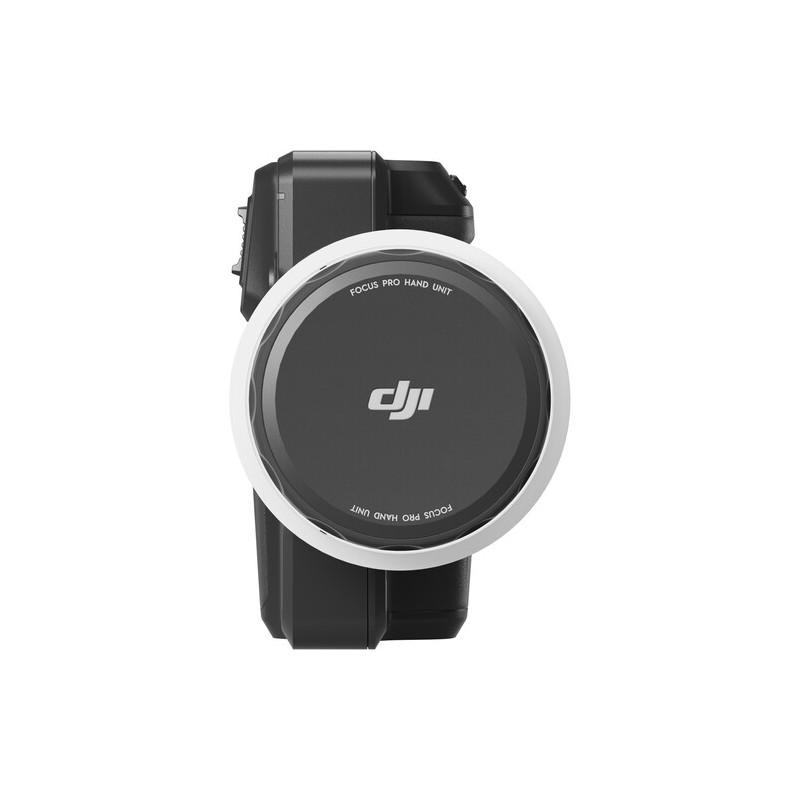

° DJI Focus Pro Hand Unit
Use the DJI Focus Pro Hand Unit to facilitate FIZ control of your manual lenses in tandem with your Focus Pro Motor and your RS 3/4 Pro gimbal stabilizer.
Integrated 2.4 GHz technology can control the Focus Pro Motor from up to 524.9' away.
Toggle AMF mode to engage autofocus, causing the focus knob to rotate simultaneously and allowing cinematographers to visually observe the focus status on the monitor and via tactile feedback.
Manual mode can then be engaged and disengaged intuitively.
The A-B electronic marking points provide tactile feedback for endpoints and step-less damping adjustment, ensuring more accurate focusing.
The unit also allows you to toggle the recording of your camera via Bluetooth. A 1.09" touchscreen display displays your current settings. Power is delivered to the hand unit via an NP-F550 battery.

DJI Focus Pro LiDAR
General
Compatibility: DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip
Resolution: 1920 x 1440
Frame Rate: 30 fps
Field of View:
- 57.4° (Horizontal)
- 44.6° (Vertical)
Range: 1.6 to 65.6' / 0.5 to 20 m
Inputs / Outputs
USB I/O: 2 x USB-C Female Input
Power
Power Source: USB
DC Input Power: 6.6 to 17.2 VDC
Power Consumption:
- 6.3 W (Typical)
- 6.8 W (Maximum)
Environmental
Environmental Protection: No
Operating Temperature: -4 to 113°F / -20 to 45°C
Physical
Mounting:
1x Cold Shoe
1x 1/4"-20 Thread
Color: Black
Cable Length: 11.8" / 30 cm
Dimensions: 2.7 x 2.2 x 1" / 68 x 57 x 25 mm
Weight: 4.9 oz / 140 g

DJI Focus Pro Grip
General
Compatibility: DJI Focus Pro Motor / RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer
Display
Display Size: 1.8"
Touchscreen: Yes
Inputs / Outputs
USB I/O: 4 x USB-C Female Input
Wireless
Wireless: 2.4 GHz Radio/RF / Bluetooth
*Built-In
Power
Power Source: Battery
Battery Type: 1x Internal Rechargeable
DC Input Power: 6.6 to 8.4 VDC
Environmental
Operating Temperature: -4 to 113°F / -20 to 45°C
Physical
Mounting:
- 1x NATO Clamp
- 2x NATO Rail
- 1x M4 Screw
- 1x 1/4"-20 Screw
Color: Black
Cable Length: 15.7" / 40 cm
Dimensions: 6.4 x 2.9 x 2.3" / 162 x 73 x 59 mm
Weight: 17 oz / 482 g

DJI Focus Pro Motor
General
Compatibility:
DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex
Max Transmission Distance: 524.9' / 160 m
Gear Specs: 30 Teeth, 0.8 MOD
Max Torque: 0.6 Nm
Speed: 300 rpm (Max)
Inputs / Outputs
USB I/O: 1 x USB-C Female Input
Wireless
Wireless: 2.4 GHz Radio/RF
*Built-In
Power
Power Source: USB
DC Input Power: 6.6 to 17.2 VDC
Environmental
Certifications: CE, FCC
Operating Temperature: -4 to 113°F / -20 to 45°C
Physical
Mounting:
- 1x 15mm Rod
- 1x 1/4"-20 Screw
- 1x Rod Mount Kit
Cable Length: 11.8" / 30 cm
Dimensions: 3.9 x 2.4 x 1.3" / 100 x 61 x 34 mm
Weight: 4.3 oz / 123 g

DJI Focus Pro Hand Unit
General
Compatibility: DJI RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer
Max Transmission Distance: 328.1 to 524.9' / 100 to 150 m
Display
Display Size: 1.09"
Touchscreen: Yes
Wireless
Wireless: Bluetooth / 2.4 GHz Radio/RF
*Built-In
Power
Power Source: Battery
Battery Type: 1x Sony L-Series
DC Input Power: 6.3 to 8.4 VDC
Power Consumption: 0.83 W (Typical)
Environmental
Certifications: CE, FCC
Operating Temperature: -4 to 113°F / -20 to 45°C
Physical
Cable Length: 19.7" / 50 cm
Dimensions: 5 x 3.4 x 3.4" / 128 x 87 x 87 mm
Weight: 19.6 oz / 555 g
