Bolt-6 LT 750 Int Ant TX/RX GM

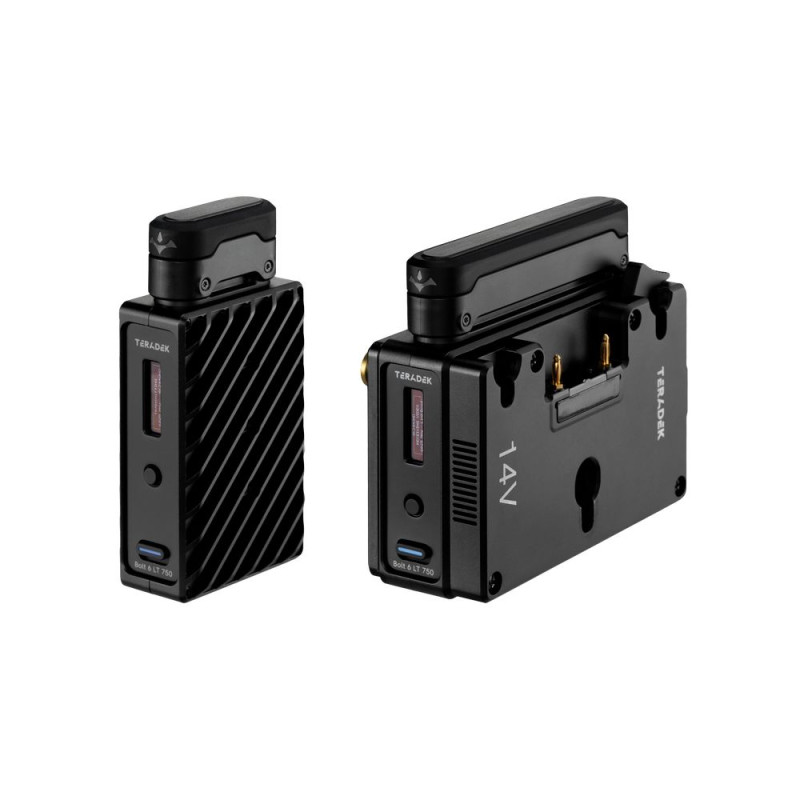

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas Gold-Mount - 10-2260-GII

Transmit and receive lossless HD video at ranges up to 750' line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas from Teradek.
This kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, both with internal antennas, that support the 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.
The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI.
Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

° Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
Transmit lossless HD video up at distances up to 750' with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek.
The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band.
This transmitter unit provides a powerful signal that can travel up to 750' line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.

° Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (Gold-Mount)
Receive lossless HD video from up to 750' away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek.
This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR, output video via an HDMI or 3G-SDI port, and it comes in a sleek form with all antennas tucked inside.
It features a bright OLED display and support for the 6 GHz wireless band.


- 3G-SDI/HDMI Transmitter & Receiver Set
- Internal Antennas Transmitter & Receiver
- Supports 6 GHz Frequency Band
- Transmits up to 750' Line of Sight
- Supports up to 4K30 Resolution Input
- 3G-SDI/HDMI Inputs & Outputs

Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
Display
Panel Type: LCD
Inputs / Outputs
Antenna I/O: No
Video I/O:
- 1x HDMI 1.4b Input
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Loop Output
Embedded Audio:
- HDMI: 2-Channel
- SDI
Audio I/O: No
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O: 1x Micro-USB Input
Encryption: 256-Bit AES
Wireless
Wireless Range: 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt App
Cellular Support: No
Format Support
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Wireless Video Compression: Uncompressed
Timecode Support: Yes
Power
Input Power: 6 to 28 VDC
Power Consumption: 9 W
Mounting
Mounting: 1x 1/4"-20 Female
Environmental
Environmental Protection: No
Certifications: FCC-15, CAN, EU, IC, ICES
Operating Temperature: 32 to 72°F / 0 to 40°C
General
Material of Construction: Aluminum

Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (Gold-Mount)
Display
Panel Type: LCD
Touchscreen: No
Inputs / Outputs
Antenna I/O: 5x RP-SMA Female
Video I/O:
- 1x HDMI 1.4b Output
- 1x BNC (3G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: No
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O: 1x Micro-USB Input
Encryption: 256-Bit AES
Wireless
Wireless Range: 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
° Non-DFS Frequencies:
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
° DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 21 dBm
Wi-Fi: Wi-Fi 6 (802.11ax)
Mobile App Compatible:
Yes: Android & iOS
App Name: Bolt App
Cellular Support: No
Format Support
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC):
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC):
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Wireless Video Compression: Uncompressed
Timecode Support: Yes
Power
Input Power: 6 to 28 VDC
Power Consumption: 11 W
Mounting
Mounting: 1x 1/4"-20 Female | 1x 3/8"-16 Female
Environmental
Environmental Protection: No
Certifications: FCC 15, CAN, IC, ICES
Operating Temperature: 32 to 72°F / 0 to 40°C
General
Material of Construction: Aluminum, Polycarbonate
