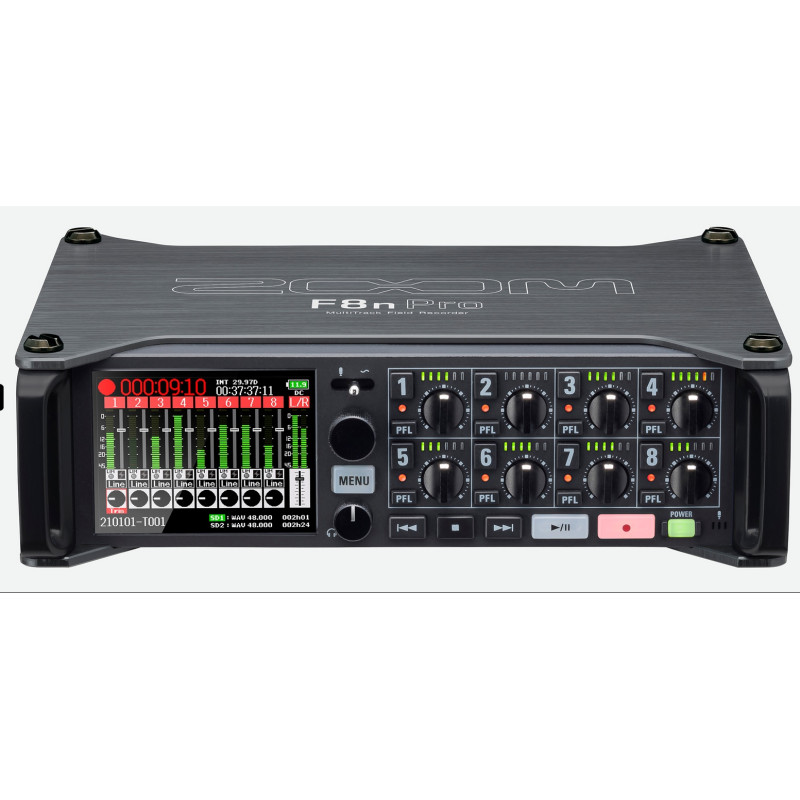

F8n PRO Mixette enregistreur 8 entrées XLR alim fantome

Capture every location recording quickly and cleanly with the Zoom F8n Pro, a sound bag-friendly multitrack field recorder with 32-bit float technology for immense dynamic range that frees you from clipping and manual gain adjustments. Offering 8-input / 10-track recording, separate converters for quiet and loud sounds, and high-grade preamps with mic/line input switching, the F8n Pro packs quantity and quality into a rugged frame that's more than ready for filmmaking, production/location sound mixing, sound effects recording, and electronic news gathering.

From the large, informative color display and user-friendly controls to the flexible powering methods, remote control options, and precision time code functionality, the F8n Pro is properly equipped to please novices and demanding veterans alike. Whether you need long-duration stereo recording for an interview, redundant capture of multi-mic setups for a video shoot, or Ambisonics sound files for virtual reality and 360-audio projects, the F8n Pro has the modes, resolutions, and media support to handle your crucial audio tasks.
Enhancements on the Pro Model
Extending the legacy of the F8n, the F8n Pro adds dual analog-to-digital converters and 32-bit float recording, enabling pristine audio recording without gain adjustment and without clipping.

Separate A/D converters for low and high gain allow the F8n Pro to achieve equally impressive SNR (signal-to-noise ratio) performance for quiet and loud sounds.
The 32-bit float WAV format can maintain the resolution at the time of recording, and even if normalization processing is performed after recording, the original sound is reproduced without deterioration.
It can also be used as an 8-input / 4-output USB audio interface that supports 32-bit float resolution.





Zoom F8N Specs
Recording Media Dual SD card slots support 16 to 2 GB SD cards, 4 to 32 GB SDHC cards, and 64 to 512 GB SDXC cards
Input Connectors 8 x Combination XLR-1/4" TRS jacks
1 x Zoom mic (disables inputs 1 and 2)
1 x Built-in mic for voice memos
Input Gain Mic: +10 to +75 dB
Line: -10 to +55 dB
Input Impedance Mic: 2 kOhms
Line: 2.6 kOhms
Maximum Input Level Mic: +14 dBu (at 0 dBFS, limiter ON)
Line: +24 dBu (at 0 dBFS, limiter ON)
Phantom Power +24/+48V 10mA maximum for each channel
EIN -127 dBu or less (A-weighted, +75 dB input gain, 150-Ohm input)
Frequency Characteristics 10 Hz to 80 kHz +0.5 dB/-1 dB (192 kHz sampling rate)
Crosstalk -90 dB or less (between adjacent channels, 1 kHz)
Output Connectors 2 x TA-3 connectors, balanced main output
1 x 3.5 mm stereo mini unbalanced output jack
1 x 1/4" unbalanced stereo headphone jack
Output Impedance Main: = 150 Ohms
Sub: = 100 Ohms
Headphones: = 15 Ohms
Output Level Main (Reference): -10 dBV (normal output level), +4 dBu (output level: line), 1 kHz, 600-Ohm load
Sub (Reference): -10 dBV (normal output level), -40 dBV (mic output level), 1 kHz, 10-kOhm load
Maximum Output Level Main: +10 dBV (normal output level), +24 dBu (output level: line), 1 kHz, 600-Ohm load
Sub: +10 dBV (normal output level), -20 dBV (mic output level), 1 kHz, 10-kOhm load
Headphones: 100 mW + 100 mW (32-Ohm load)
Dynamic Range A/D: 120 dB typical (-60 dBFS input, A-weighted)
D/A: 106 dB typical (-60 dBFS input, A-weighted)
Recording Formats WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz, 16-/24-bit, mono / stereo / 2-10 ch poly, BWF, and iXML
MP3: 128 / 192 / 320 kb/s, 44.1 / 48 kHz, ID3v1 tags
Tracks Maximum Simultaneous Recording Tracks, WAV: 10 (8 inputs + stereo mix), 8 at 192 kHz sampling rate
Maximum Simultaneous Recording Tracks, MP3: 2
Recording Time Using a 32 GB Card:
30:51:00 (48 kHz / 24-bit stereo WAV)
7:42:00 (192 kHz / 24-bit stereo WAV)
Time Code Connector: BNC
Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode)
Frame Rates: 23.976, 24, 25, 29.97, 30 ND; 29.97, 30 D
Precision: ±0.2 ppm
Supported Input Levels: 0.2 to 5.0 V p-p
Input Impedance: 4.6 kOhms
Output Level: 3.3 V p-p
Output Impedance: = 50 Ohms
Power Supplies 8 x AA batteries
AD-19 12 VDC power supply (2 A)
HIROSE HR10A-7R-4S external power pack (4-pin, 9 to 18 VDC)
Power Consumption 15 W
Continuous Recording Time 2 Channels at 48 kHz / 16-bit to SD1
Alkaline Batteries: = 6 hours
NiMH (2450 mAh): = 8.5 hours
Lithium Batteries: = 12 hours

8 Channels at 48 kHz / 24-bit to SD1
Alkaline Batteries: = 3.5 hours
NiMH (2450 mAh): = 6 hours
Lithium Batteries: = 8 hours

8 Channels at 192 kHz / 24-bit to SD1
Alkaline Batteries: = 1 hour
NiMH (2450 mAh): = 2 hours
Lithium Batteries: = 3 hours
Display 320 x 240, 2.4" Full-Color LCD
USB Class Mass Storage Operation: USB 2.0 high speed
Multi-Track Audio Interface Operation: USB 2.0 high speed,
Stereo Mix Audio Interface Operation: USB 2.0 full speed
Audio Out from USB: USB 2.0 high speed
USB Specifications Multi-Track Audio Interface Operation: 44.1 to 96 kHz, 16-/24-bit, 10-in/4-out
Stereo Mix Audio Interface Operation: 44.1/48 kHz, 16-bit, 2-in/2-out
Audio Out from USB: 44.1/48 kHz, 16-/24-bit, 10-in/4-out
Dimensions (W x D x H) 7.0 x 5.5 x 2.1" / 178.2 x 140.3 x 54.3 mm
Weight 2.2 lb / 1.0 kg
