Zoomer

CV508 Camera Mini Full HD SDI HDMI

Marshall

Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI & HDMI Outputs

Plus de détails

680,26 € TTC 680.26

566,88 € HT

Ajouter à la liste

Voir plus
Caractéristiques

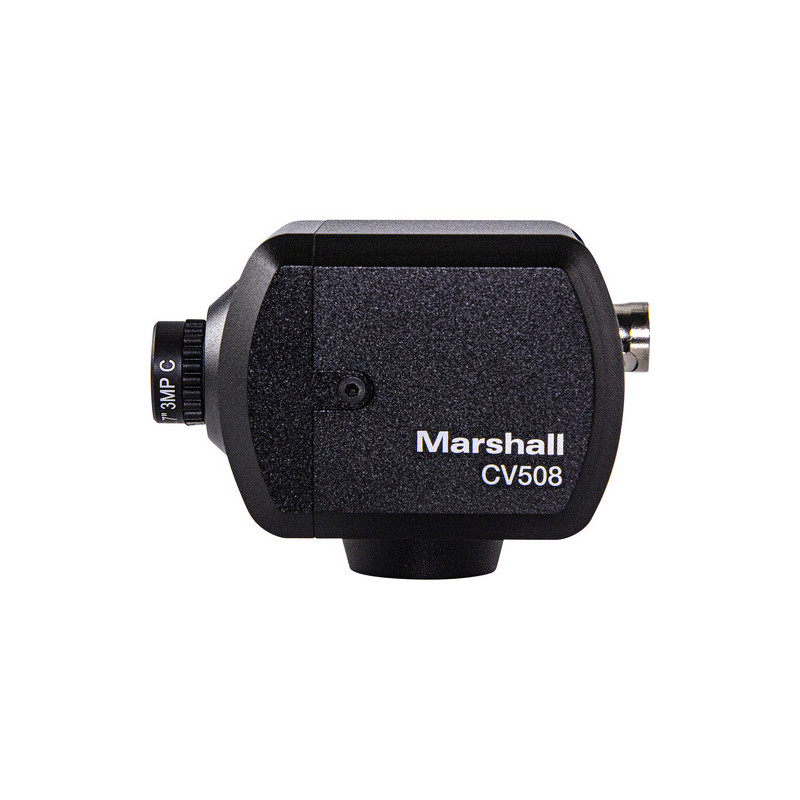

Marshall Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI & HDMI Outputs

The CV508 Micro HDMI/3G-SDI POV Camera from Marshall Electronics is designed with professionals in mind, and it delivers crisp video to fit the individual needs of productions large and small.
The camera is built around a next-generation Sony 1/2.8" 2.2MP CMOS sensor capable of capturing up to 1080p60 video in low-light situations with rich color accuracy via its HDMI or 3G-SDI outputs.
The CV508 features an interchangeable M12 mount, and a 4mm prime lens with an 85° horizontal angle of view is included.

The camera settings can be adjusted using the optional Marshall CV-RCP-V2 controller, camera control software, or a third-party system using the standard VISCA serial protocol via RS-485.
Other features include an adjustable color temperature, backlight compensation, image mirror/flip, defog, and a removable IR sensor allowing the camera to work in day/night mode.
The camera includes a breakout cable with an OSD joystick, RS-485, 3.5mm stereo audio, and power connectors.

° Sony 1/2.8" Image Sensor
The next-generation Sony sensors provide clear HD images with rich accurate 10-bit (4:2:2) color, even in low-light (0.01 lux), and ability to switch to night mode (0.005 lux) where IR wavelengths can be captured in complete darkness.

° Interchangeable M12 Lenses
Marshall CV508 cameras come with a high-quality 4mm (85° horizontal angle of view) prime lens, which ensures focus from near contact to infinity.
Marshall offers a wide selection of high-quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

° Durable, Flexible, Powerful
The durable CV508 body is chiseled from one block of aluminum alloy with rear-panel connector protection.
The CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust and match capability.

° Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality, incorporating reliability, durability, flexibility, and most importantly, affordability with feature sets that matter to our industry partners.

General
Compatibility: Marshall M12 Lenses
Image Sensor: Sony 1/2.8" IMX CMOS Solid-State Image Sensor with Square Pixel Array
Color: 10-Bit, 4.2.2, ITU BT.709
Lens Type: Interchangeable M12
Lens Focal Length: 4mm
Angle of View: 85° (Horizontal)
Electronic Shutter: 1/30 to 1/10000

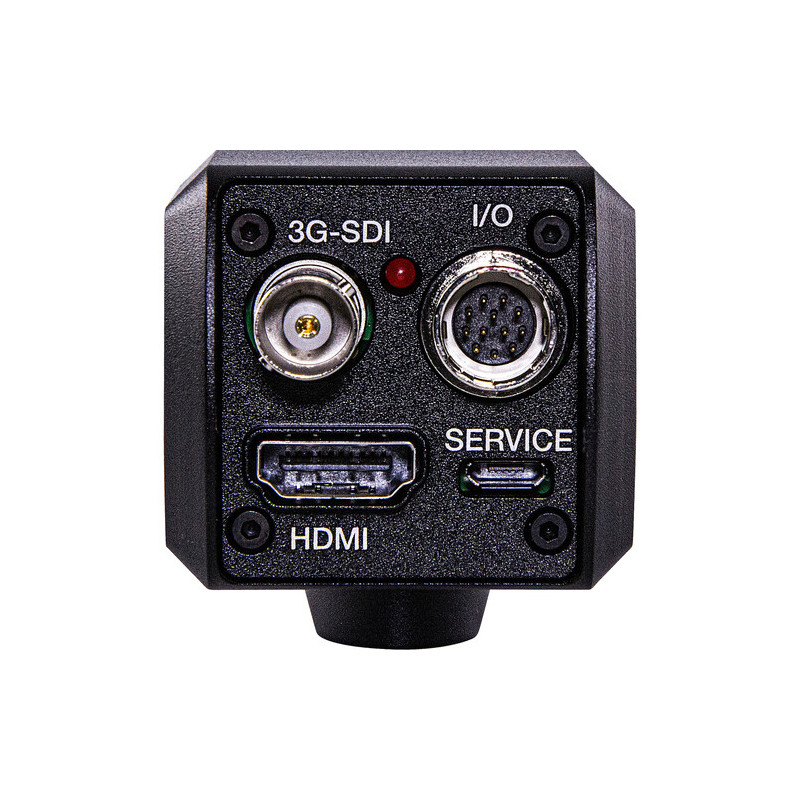

Inputs / Outputs
USB I/O: 1 x Micro-USB 2.0 Female Input
Video I/O:
- 1x BNC (3G-SDI) Output
- 1x HDMI 1.3 Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Mic Input
Video Output:
- HD-SDI: 10-Bit, 4:2:2, BT.709
1920 x 1080p: 30, 29.97, 24, 25, 23.976
1920 x 1080i: 60, 59.94, 50
1280 x 720p: 60, 59.94, 50
- 3G-SDI: 10-Bit, 4:2:2, BT.709
1920 x 1080p: 60, 59.94, 50
- HDMI: 10-Bit, 4:2:2, BT.709
Up to 1920 x 1080p: 60
Control Protocol:
VISCA over RS-485
Sony VISCA Protocol, Camera ID#, Baud Rate 2400 to 115200 bps
Input Connections: 12-Pin Locking Hirose with Power In, Audio In, RS-485, and OSD Joystick Control

Power
Power Source: Proprietary Interface (Included)
DC Input Power: 7 to 15 VDC
Power Consumption:
- 6 W (Maximum)
- 2.76 W (Typical)

Environmental
Operating Temperature: 14 to 122°F / -10 to 50°C

Physical
Material of Construction: Aluminum
Dimensions: 2.2 x 1.7 x 1.6" / 55 x 44 x 40 mm
Weight: 4.8 oz / 136 g
