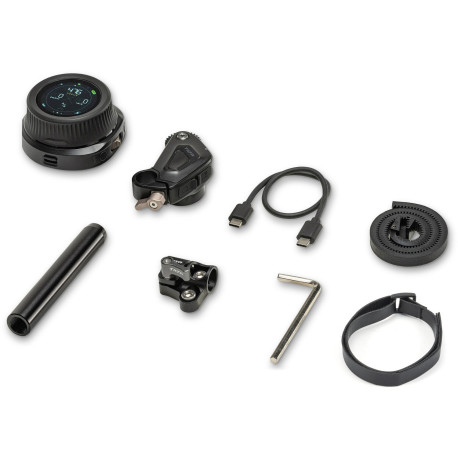

WLC-T05 Nucleus Nano II

Tilta Nucleus Nano II Wireless Lens Control System (WLC-T05)

The Tilta Nucleus Nano II is a wireless lens control system with an intuitive touchscreen , high-torque motor , long-lasting battery, and multi-channel communications .
The Nucleus Nano II combines camera control , motor control and gimbal control in one device.
Intuitive touchscreen controls provide easy, one-touch access for quick adjustments.
The Nucleus Nano II's new motor design offers 5x more torque than the previous Nucleus Nano and features aautomatically adjustable torque and an efficient cooling system for more reliability.

The responsive engine allows adjustments to be made without lag.
The internal battery is equipped with an intelligent control and offers up to 7 hours of running time.
Multi-channel communication allows up to three motors to be controlled so that zoom, focus, iris and more can be easily adjusted.

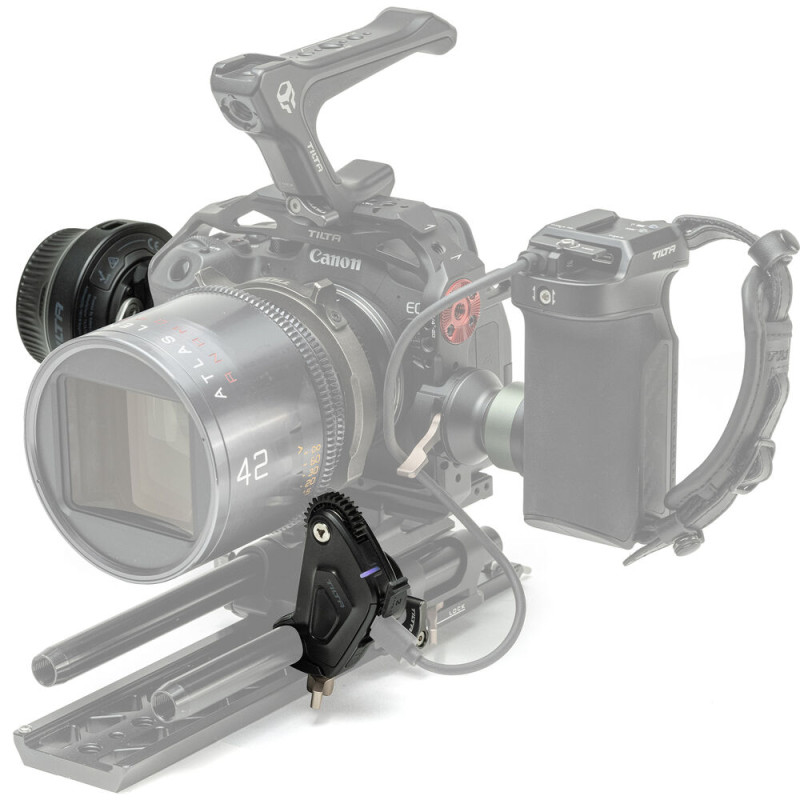

The Nucleus Nano II is compatible with RS2 & RS3 Pro Gimbalsand supports efficient control and communication, the Nucleus Nano II is also compatible with other Tilta wireless control systems such as the original Nano, the Nucleus-M, the Mirage VND motor and others.
The system is also compatible with the Tilta Gravity Motorized Lighting Control System.

wireless lens control system
Control of up to three motors
intuitive touchscreen control with swipe gestures
Vibration signal replaces physical hard stops, the engine can still be turned after the signal
Camera control function e.g. aperture, exposure time, ISO or white balance (only available for compatible camera models)
long-lasting internal battery with up to seven hours of battery life
efficient cooling system for more reliability
automatically adjustable torque
Compatible with the Nucleus Nano, Nucleus-M, Mirage VND Motor and Gravity Radio Control Kit for LED Headlights
Compatible with DJI RS2 and RS3 Pro gimbals
NATO clamp with integrated contacts, e.g. for attaching to the optional gimbal handle control
When connected to the optional handle, the steering wheel module can be loaded
USB type C connection for charging the internal battery



General
Compatibility: Tilta Nucleus-N / Nucleus-M, DJI RS Lens Control Motor
Gear Standard: 0.8 MOD
Indicators: LED

Display
Display Size: 1.6"
Touchscreen: Yes

Inputs / Outputs
USB I/O:
- 1 x USB-C Female Input/Output
- 1 x USB-C Female Input/Output
- 1 x USB-C Female Input

Wireless
Wireless: 2.4 GHz Radio/RF / Bluetooth (*Built-In)
Wi-Fi: Yes
Bluetooth: Yes
Mobile App Compatible:
No
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility

Power
Power Source: USB, Battery
Battery Type: 1 x Internal Rechargeable
Battery Capacity: 1800 mAh

Environmental
Environmental Protection: None
Operating Temperature: 14 to 140°F / -10 to 60°C

Physical
Mounting:
- 1 x 15mm Rod Clamp
- 1 x NATO Clamp
Color: Black
Material of Construction: Aluminum Alloy, Stainless Steel
Dimensions: 9 x 7 x 4" / 22.9 x 17.8 x 10.2 cm
Weight: 2.5 lb / 1.1 kg
