Bolt-6 LT TX/RX 1500 No Mount

Teradek 3G-SDI/HDMI Transmitter/Receiver Kit 1500' / 457.2 m (HDMI: 2-Channel, SDI: 2-Channel) - 10-2270 - no mount

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek.

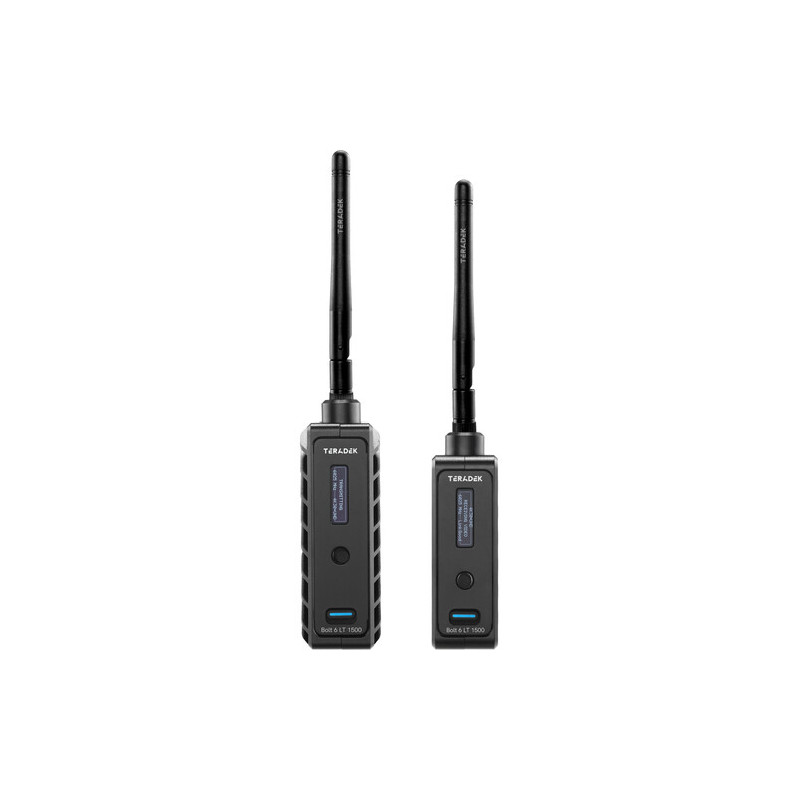

The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI.
Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Inputs / Outputs
Antenna I/O:
- Transmitter: 2 x RP-SMA Female
- Receiver: 5 x RP-SMA Female
Video I/O:
- Transmitter: 1 x HDMI 1.4b Input
- Transmitter: 1 x BNC (3G-SDI) Input
- Transmitter: 1 x BNC (3G-SDI) Loop Output
- Receiver: 1 x HDMI 1.4b Output
- Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES

Power
DC Input Power: 6 to 28 VDC
Power Consumption:
- Transmitter: 9 W
- Receiver: 11 W

Mounting: 1 x 1/4"-20 Female

Environmental
Environmental Protection: None
Operating Temperature: 32 to 72°F / 0 to 40°C

General
Material of Construction: Aluminum, Polycarbonate
Dimensions:
- Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
- Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight:
- Transmitter: 7.3 oz / 206 g
- Receiver: 10.3 oz / 292 gWireless
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
° DFS Frequencies:
US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes

Format Support
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC):
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
