Pyro-H kit Emetteur Recepteur HDMI 400m

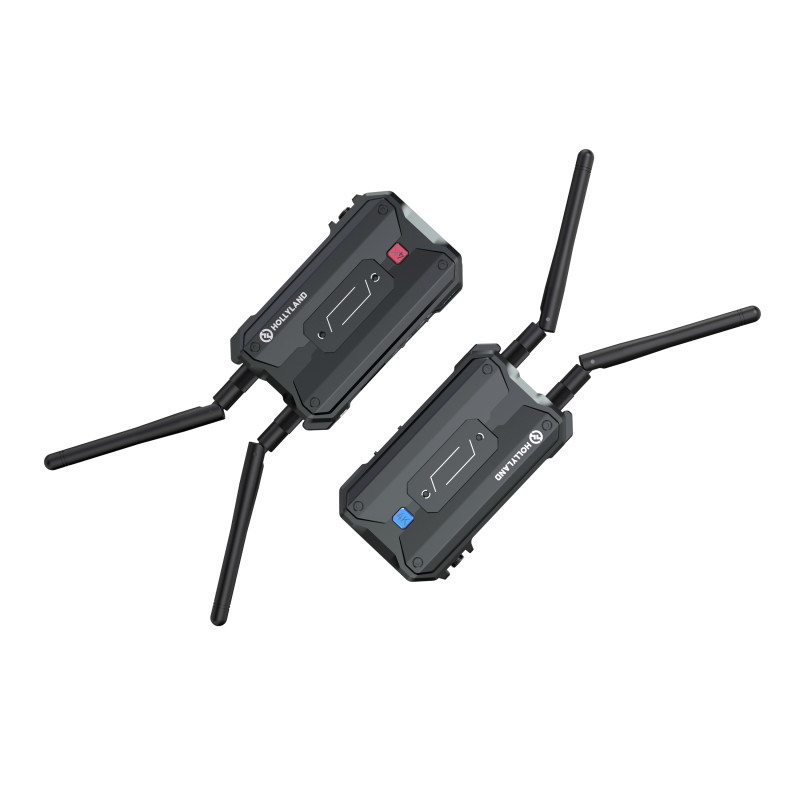

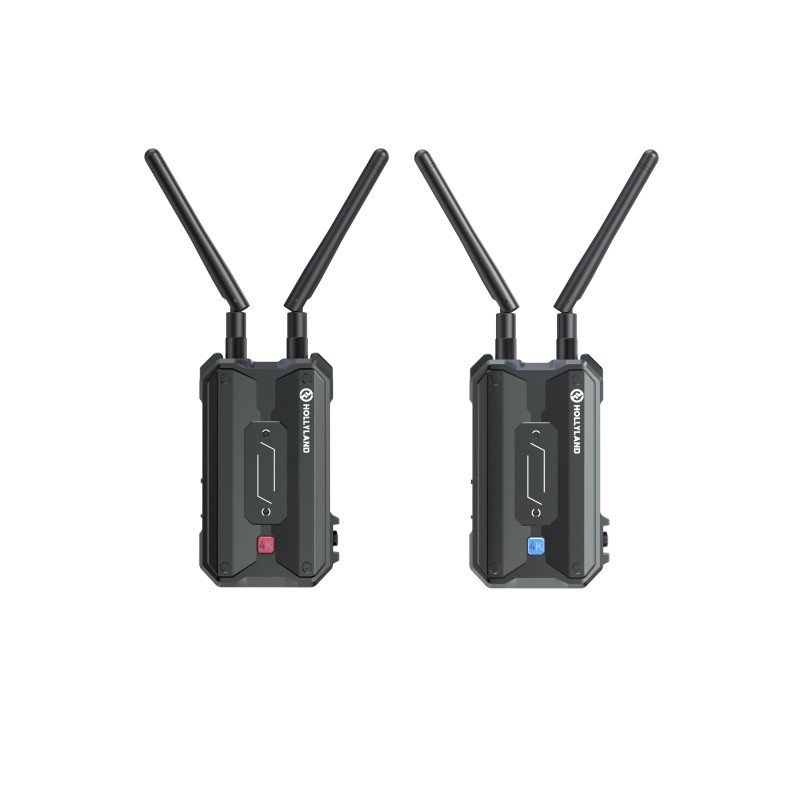

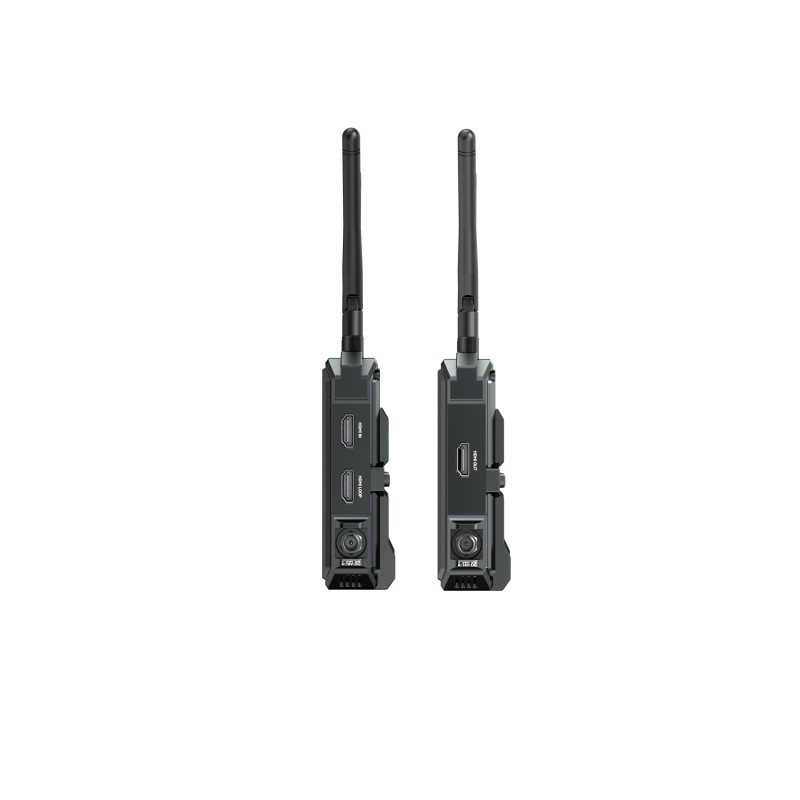

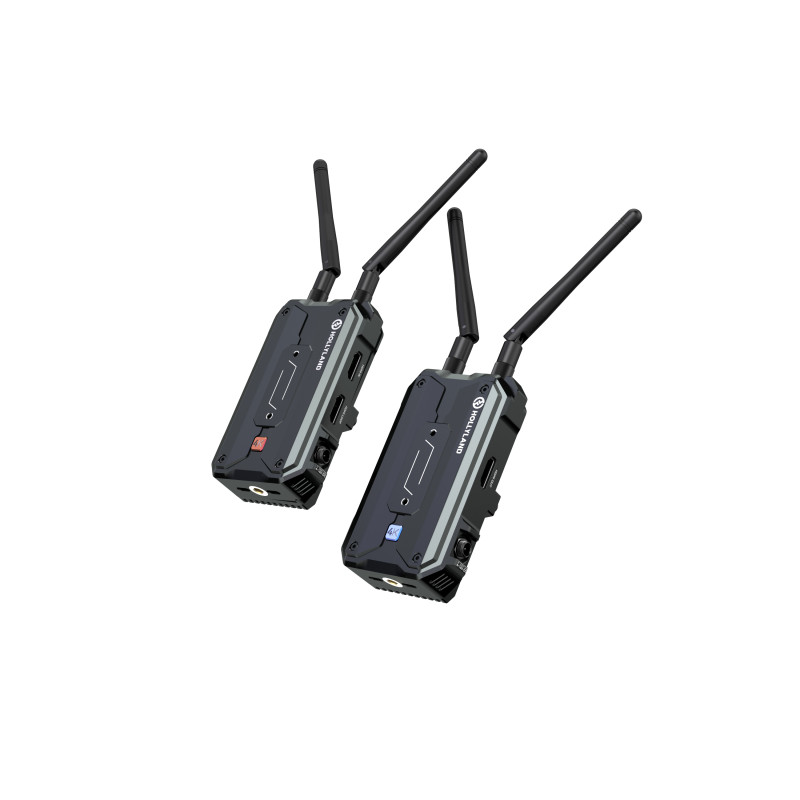

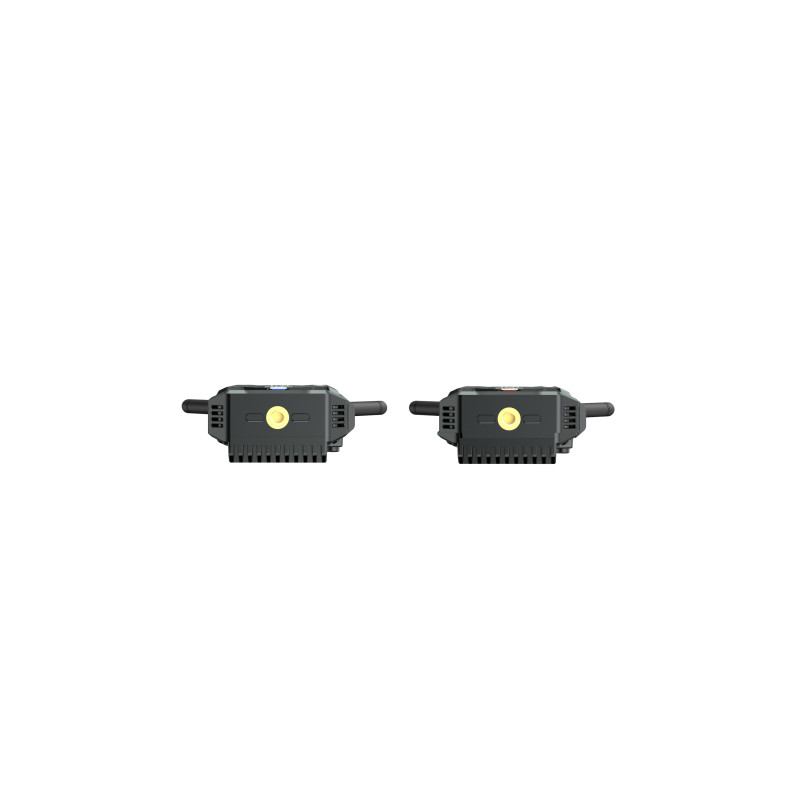

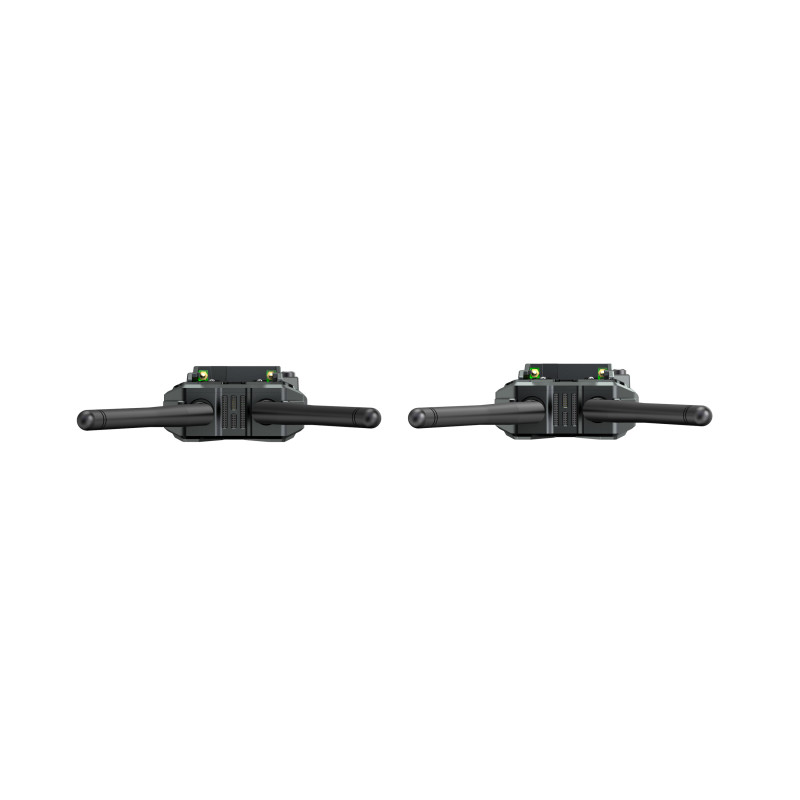

Hollyland Pyro H 4K HDMI Wireless Video Transmission System, 40 MHz, 20 MHz, Transmit UHD 4K30 Video up to 1300'

Add 4K30 wireless video transmission to your production using the versatile Pyro H 4K HDMI Wireless Video Transmission System from Hollyland.
The system includes a wireless transmitter, a wireless receiver, five antennas, a USB-A to USB-C adapter, and an adjustable shoe adapter mount.
The transmitter provides HDMI input and features extremely low 60 ms latency that accepts line-of-sight transmission from up to 1300' away to the included receiver.
When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away.
The receiver outputs to HDMI, and the transmitter also features an HDMI loop output for displaying your local feed on a monitor.
Add 4K30 wireless video transmission to your production using the versatile Pyro H 4K HDMI Wireless Video Transmission System from Hollyland.
The system includes a wireless transmitter, a wireless receiver, five antennas, a USB-A to USB-C adapter, and an adjustable shoe adapter mount.
The transmitter provides HDMI input and features extremely low 60 ms latency that accepts line-of-sight transmission from up to 1300' away to the included receiver.
When using broadcast mode using up to four receivers and two mobile devices, the system supports up to 650' away.
The receiver outputs to HDMI, and the transmitter also features an HDMI loop output for displaying your local feed on a monitor.

° Long Distance, High Quality
The Pyro H Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'.
When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.

° Strong Signal Strength
At a stable transmission range of up to 1300', the Pyro H features latency as low as 60ms.
Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro H excels with increased transmission distance while preserving video quality and minimizing latency.
The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.

° Crisp and Sharp Images
With up to 4K30 transmission capabilities, the Pyro H transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.

° USB Video Class
UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations.
This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.

° Smart Channel Scan
Upon startup, Pyro H automatically chooses a high-quality frequency channel, optimizing the user experience from the outset.
Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

° Easy Setup
The Pyro H supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.

° Continuous Power, Multiple Options
In addition to DC input and NP-F batteries, the Pyro H also supports a USB-C power supply (5-12V).
A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.

Inputs / Outputs
Antenna I/O: Transmitter/Receiver: 2x RP-SMA Female
Video I/O:
- Transmitter: 1x HDMI 1.4b Input
- Transmitter: 1x HDMI 1.4b Output
- Receiver: 1x HDMI 1.4b Output
Embedded Audio: HDMI
Audio I/O: No
Power I/O: Transmitter/Receiver: 1x Barrel Input
Encryption: No

Wireless
Wireless Range:
- 1300' / 396.2 m (Line-of-Sight)
- 650' / 198.1 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: US: 5.15 to 5.25 GHz
Latency: 60 ms
RF Power: 23 dBm
RF Sensitivity: -85 dBm
Wi-Fi: Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
Bluetooth: No
Mobile App Compatible: Yes: Android & iOS

Format Support
Video Format:
° HDMI:
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Wireless Video Compression: Uncompressed
Timecode Support: Yes

Power
Input Power: 6 to 16 VDC
Power Consumption:
- Transmitter: 7 W
- Receiver: 4 W

Mounting
Mounting: 1x 1/4"-20 Female

Environmental
Environmental Protection: No
Certifications: No

General
Dimensions: Transmitter/Receiver: 4.3 x 2.5 x 1.3" / 109 x 62.3 x 33.4 mm
Weight: Transmitter/Receiver: 6.8 oz / 192 g
