SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

SmallRig

Découvrez la plaque de montage de batterie V-Mount avancée SmallRig 3203B, idéale pour les systèmes de tiges 15mm LWS. Compatible avec la plupart des batteries V-Mount, elle offre plusieurs ports de sortie, y compris USB-C et D-Tap, pour une recharge rapide. Fabriquée en aluminium, elle assure durabilité et dissipation thermique optimale. Avec ses multiples points de fixation, cette plaque est parfaite pour tous vos accessoires. Poids : 337g. Garantie 2 ans.

Plus de détails

146,28 € TTC 146.28

121,90 € HT

Ajouter à la liste

Voir plus
Caractéristiques

Info

V-Mount Battery Mount Plate

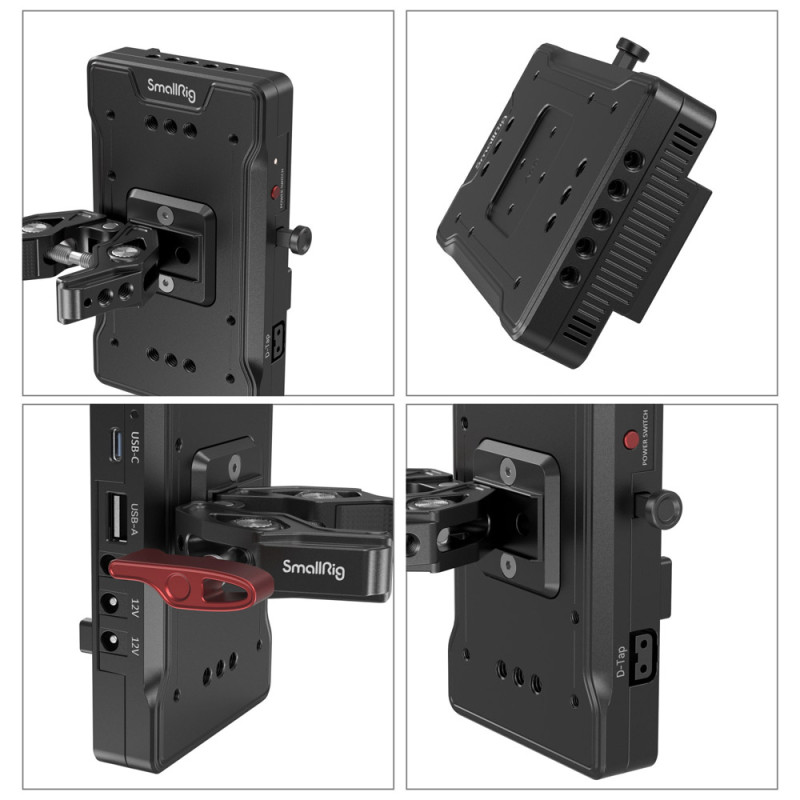

The SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B can be quickly mounted on a 15mm LWS rod system. It has a standard V-mount and is compatible with most V-mount batteries on the market. It features six 1/4"-20 screw holes and ten M4 screw holes on the back, five 1/4"-20 screw holes on the top and bottom, supporting dual rod clamps and many other accessories.

Highlights

Compatible with most V-mount batteries
D-Tap (14.8V x 1) and DC (8V x 1 / 12V x 2) power port
Quickly mounts on 15mm LWS rod system
With 1/4"-20 thread for double rod clamp and other accessories.

The SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B comes with a PD-protocol compatible USB-C input , output (65W Max.) port and a QC-protocol compatible USB-A output (36W Max.) port for fast charge-discharge, a D-Tap input-output (14.8V) ports and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2).

The on-off light and charge-discharge light indicate the working status and fast-low charging mode. The on-off button can simultaneously operate multiple ports. Moreover, the aluminium alloy plate has a comfortable texture, with wonderful heat dissipation performance and durability.

Characteristics

Double rod diameter：15mm (for 15mm LWS rod system)
Battery voltage：11.0V~16.8V
Nominal capacity battery：3500mAh~20000mAh / 14.8V
Cut-off voltage：11.0V
Input voltage (max.)：16.8V
Working power (Max.)： ≤ battery power (depending on battery capacity)
Total maximum power： discharge: 271W (max.)
Rated input/output current D-Tap： 5A
D-Tap Input/Output current (max.)： 10A (depending on power adapter)
D-Tap Input Voltage： 11.0V~16.8V
USB-A Output Power： 36W (Max.)
USB-A Output Protocol： QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power： 65W (Max.)
USB-C Output Power： 65W (Max.)
USB-C Input / Output Protocol： PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
DC1 Output： 8.0V / 3A (Max.)
DC2 Output： 12V / 3A (Max.)
DC3 Output： 12V / 3A (Max.)
DC Overcurrent Protection： ≥4.1A
Material: aluminium alloy
Weight: 337±5g
Dimensions: 16.87cm×10.8cm×3.3cm
2-year warranty
