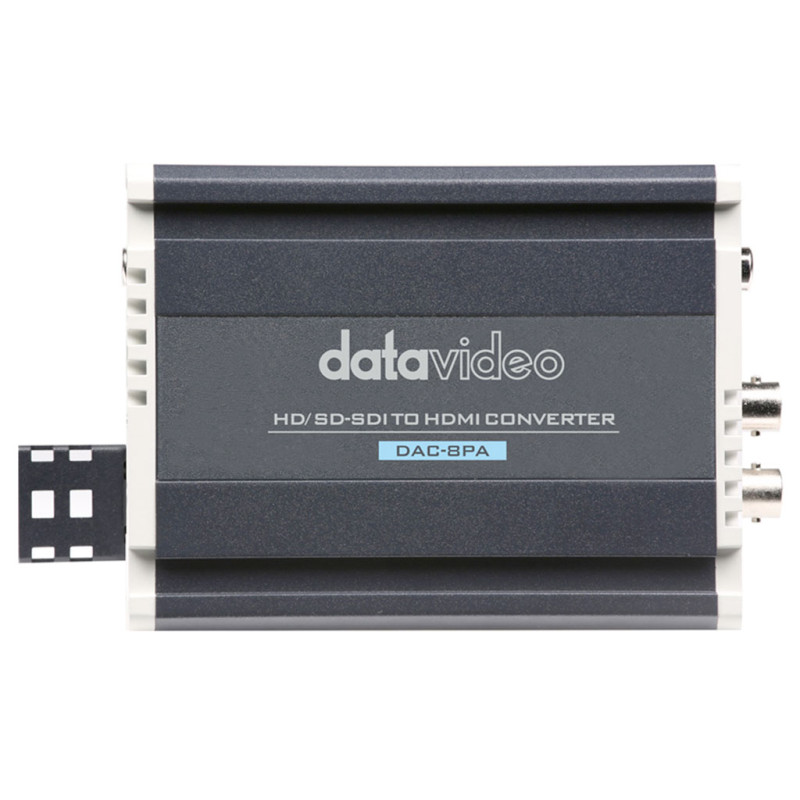

DataVideo DAC-8PA (3G SDI to HDMI)

DataVideo

DAC-8PA (3G SDI to HDMI)

Plus de détails

227,99 € TTC 227.99

189,99 € HT

Ajouter à la liste

Voir plus

DAC-8PA

SDI to HDMI Converter
A wide range to use in broadcast and professional AV applications.

Convert SDI to HDMI with audio de-bedding options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-beded audio from a stereo RCA connection, or can be used in both HDMI output and analog audio output.

Support 1080p 50/60 signal
Automatic input signal detection and HDMI support for high color (Deep Color).

Support stereo audio output
One SDI loop-through output and one HDMI output.
Aluminum alloy design, sturdy and durable

DAC-8PA SDI to HDMI Converter
Conversion	3G/ HD/SD-SDI to HDMI
Video Inputs	1x 3G/HD/SD-SDI
Loop Through	1
Video Outputs	1x HDMI with embedded Audio
Audio Inputs	2x SDI Audio embedded
Audio Outputs	2x RCA (Stereo Pair) 2x HDMI Audio embedded
Supported Video Input Formats	1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i 50 (PAL), 525i 59.94 (NTSC)
Output Resolutions	Automatically matches the SD, HD and 3G SDI video input
Equalizer	Yes
Reclock	Yes
SDI Cable Drive	Yes
Dimension (LxWxH)	112 x 85 x 45 mm
Weight	0.4 kg
Operating Temp. Range	0~40 °C
Power	DC 12V, 4W
What's in the Box	1 x DAC-8PA product 1 x AD Switch DC 12V 1 x Thank You Card
