SmallRig 2092 Universeel 15mm Rail Support Systeem Baseplate

SmallRig

Découvrez la baseplate universelle SmallRig 2092 pour rails de 15 mm, idéale pour maximiser le potentiel de votre caméra. Compatible avec les reflex et les hybrides, elle permet un réglage facile de la hauteur jusqu'à 24 mm grâce à une molette. Équipée d'un plateau QR Arca-swiss pour une fixation rapide, elle dispose de plusieurs filetages pour une personnalisation optimale. Compacte (11,6 x 7,2 x 5,7 cm) et légère (415 g), elle est parfaite pour vos sessions de tournage. Garantie 2 ans.

Plus de détails

188,38 € TTC 188.38

156,98 € HT

Ajouter à la liste

Voir plus

Info

SmallRig 2092 Universal 15mm Rail Support System Baseplate

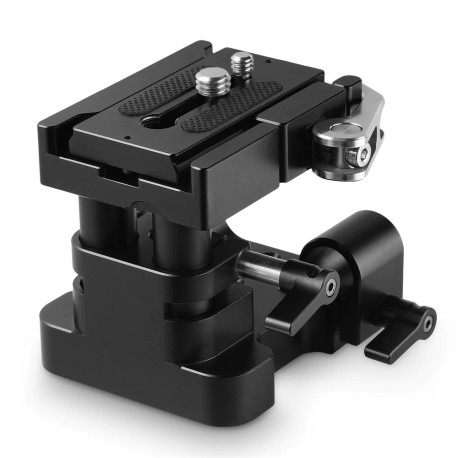

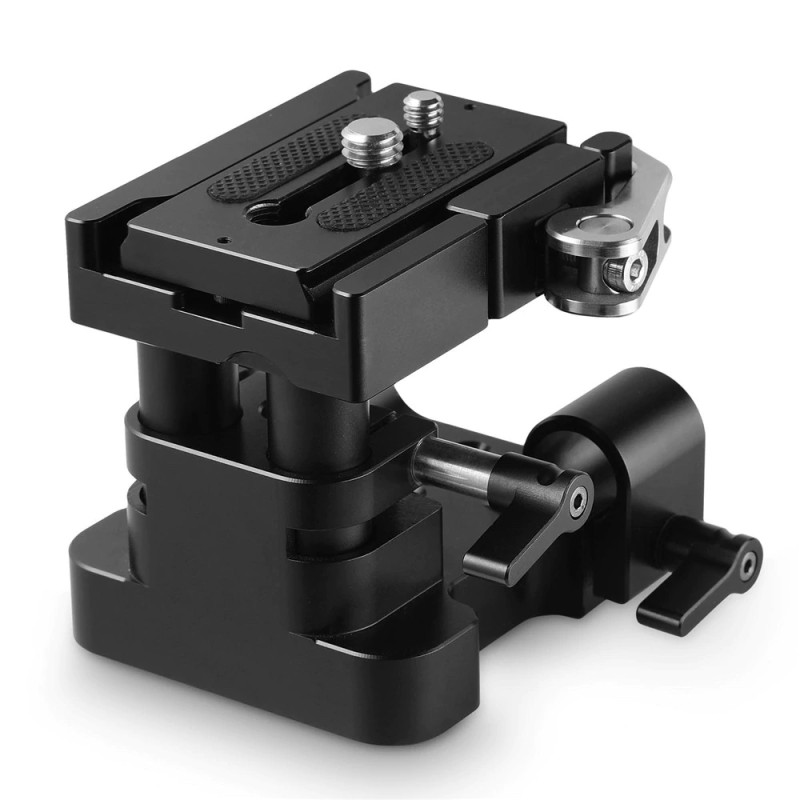

The SmallRig 2092 Universal 15mm Rail Support System Baseplate could offer lots of additional attachment options and enables the camera to release its potential to the utmost as per the needs of the cameraman during shooting. It locks the QR plate via a locking lever for quick release and attachment. The Arca QR plate on the top could be mounted with the camera, and it features convenient detachment and it is very easy to switch to handheld shooting. It could attach to a 15mm Rod 1053 for follow focus, matte box and Long Lens Support with Dual 15mm Rod Clamp 1087 based on your needs.

Its adjustable height could reach up to 24mm in maximum via a wingnut, thus it ensures 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm. The wingnut at the side enables enough space for adjustment manually.

It is equipped with 1/4''-20 and 3/8''-16 threaded holes at the bottom for DIY operation. Therefore, it could attach Quick Dovetail (Manfrotto) 1280/1767/1647 and then sit on Manfrotto tripod.

Characteristics

It is a universal adjustable baseplate compatible with a mirrorless camera and DSLR
It comes with a base plate and a QR plate of Arca-swiss standards, locked via a locking lever for quick release and attachment of camera
It could be adjusted in height via a wingnut, and thus it enables 85mm rod height. The height from the QR plate to rod center ranges from 33.6mm to 57.6mm
It is equipped with 1/4''-20 and 3/8''-16 threaded holes to attach QR plates and then tripod
Dimensions of 11.6 x 7.2 x 5.7 centimetres
Weighs 415 grams
2 year warranty
