Kiloview P1 4G Bonding SDI Video Encoder for Outdoor Live broadcast

Kiloview

HD/3G-SI Wireless 4G-LTE Bonding Video Encoder

Video encoder is a professional high-end encoding device specially designed for mobile applications.

It can encode SDI video source , then transmit it to the internet live broadcast platforms through multi-channels 4G-LTE network (bonding).
Also supports wired/wifi network transmission.
P1 encoder has approved by CE,FCC,ISO,etc.

Plus de détails

978,42 € TTC 978.42

815,35 € HT

Ajouter à la liste

Voir plus
Documents (4)
Vidéo

P1 4G Bonding SDI Video Encoder for Outdoor Live broadcast

Anytime Anywhere
Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It can encode SDI or HDMI video source to H.264 IP streams and then transmit it to the internet live broadcast platforms through a multi-channel 4G-LTE network (bonding). It also supports wired/wifi network transmission.

P1 supports SDI input
P2 supports HDMI input

Parameters

Model No.	P1, P2
Input	SDI (P1): HDMI (P2)
Transmission mode	4G-LTE, WIFI (2.4/5G dual band), Ethernet by USB expansion
4G bonding capacity	4 channels of 4G bonding (2 CH internal+ 2 CH external)
Video resolution	Up to 1080P60Hz: 1080p23.98/24/25/29.97/30 1080p50/59.94/60 1080i50/59.94/60 720p23.98/24/25/29.97/30 720p50/59.94/60
Video encoding	H.264/AVC, Motion-JPEG
Audio encoding	AAC/G.711
Encoding latency	<67ms
Media protocol	RTMP/RTSP/SRT/RTP/HLS/TS over UDP, custom for SIP

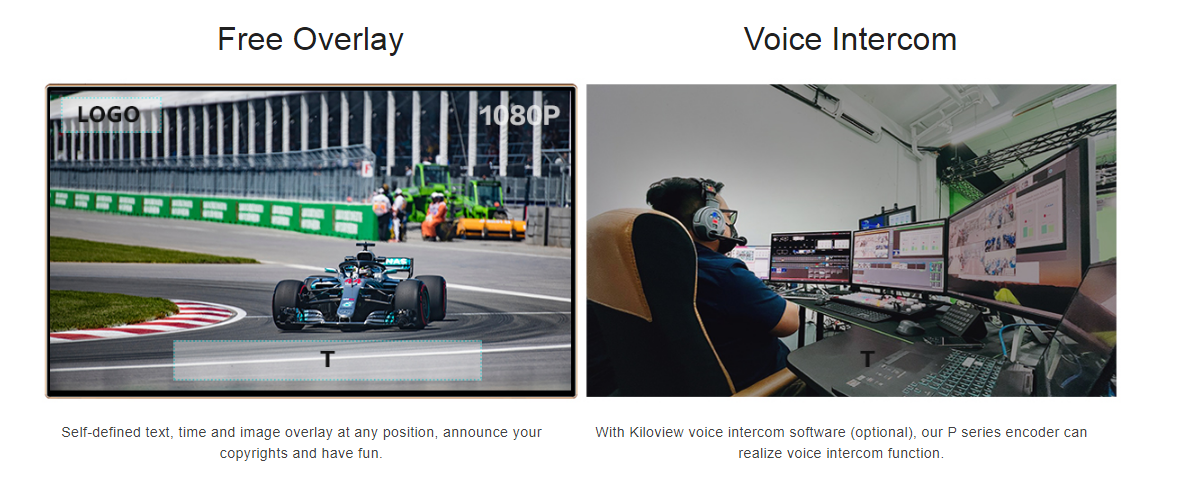

Graphic overlay	User-defined text, image overlay

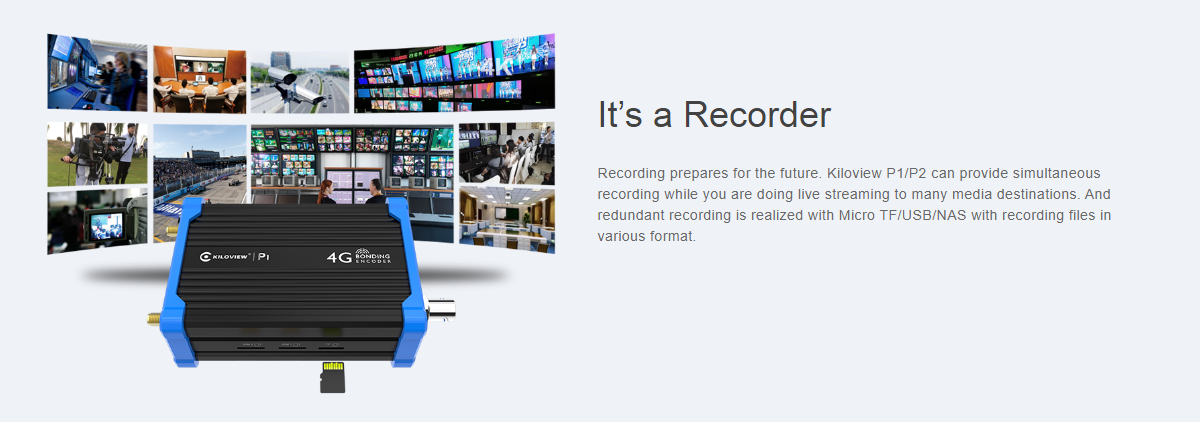

Recording	TF card slot/hard disk by USB expansion for local recording and NAS network storage
Management	Android APP/Web
Hot shoe	Removable
Battery capacity	3.7V 6800mAh (29.6Wh)
Power supply	DC 12V 1A
Power consumption	6.5w
Operating temperature	-20~45℃
Dimension	1157535mm (4.53”2.95”1.38”)
Weight	400g (14 oz)

Quick Comparison of our Encoders

Product Type	Model No.	Input Interface	Network Connections	Resolution	Remark(s)
H.264 4G Encoder	P1	3G-SDI	4G/WiFi/Ethernet/Satellite	1080P60	Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities
H.264 4G Encoder	P2	HD HDMI	4G/WiFi/Ethernet/Satellite	1080P60	Built-in Battery, Cold-shoe Installation, Compatible with Outdoor Activities
Rackmount Codec	1U-1/2/3/4	3G-SDI +HDMI	Ethernet/Satellite	1080P60	Mixed Insertion of 1-4 Channels of Codec Modules, Dual Power
Rackmount Codec	3U-1/8/16	3G-SDI +HDMI	Ethernet/Satellite	1080P60	Mixed Insertion of 8/16 Channels of Codec Modules, Dual Power
H.264 Wireless Encoder	G1	3G-SDI	WiFi/Ethernet/USB Extended 4G/Satellite	1080P60
H.264 Wireless Encoder	G2	HD HDMI	WiFi/Ethernet/USB Extended 4G/Satellite	1080P60
H.264 Wired Encoder	E1	3G-SDI	Ethernet/Satellite	1080P60
	E2	HDMI	Ethernet/Satellite	1080P60
	M2	VGA+HDMI	Ethernet/Satellite	1080P60
