Pro Convert for NDI to SDI Magewell

Zoomer

Magewell Pro Convert for NDI to SDI

Magewell

Converts a live NDI® stream into SDI

Connects baseband presentation or distribution equipment into IP-based media networks
Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

MAG1/64150

Plus de détails

489,60 € TTC 489.6

408,00 € HT

Ajouter à la liste

Voir plus
Dans la boite
Caractéristiques
Documents (1)

Pro Convert for NDI to SDI

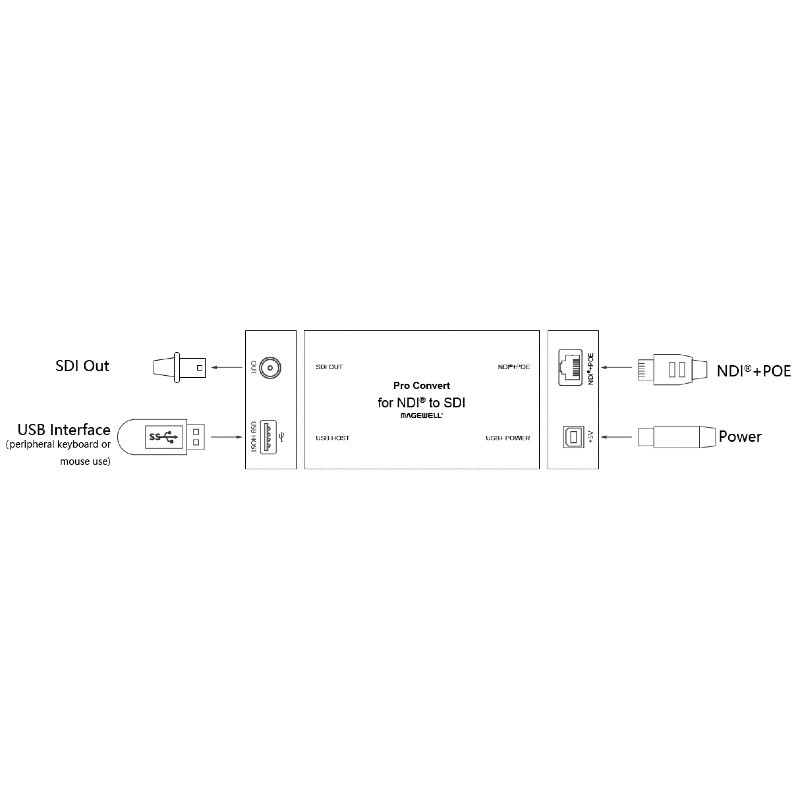

Interface

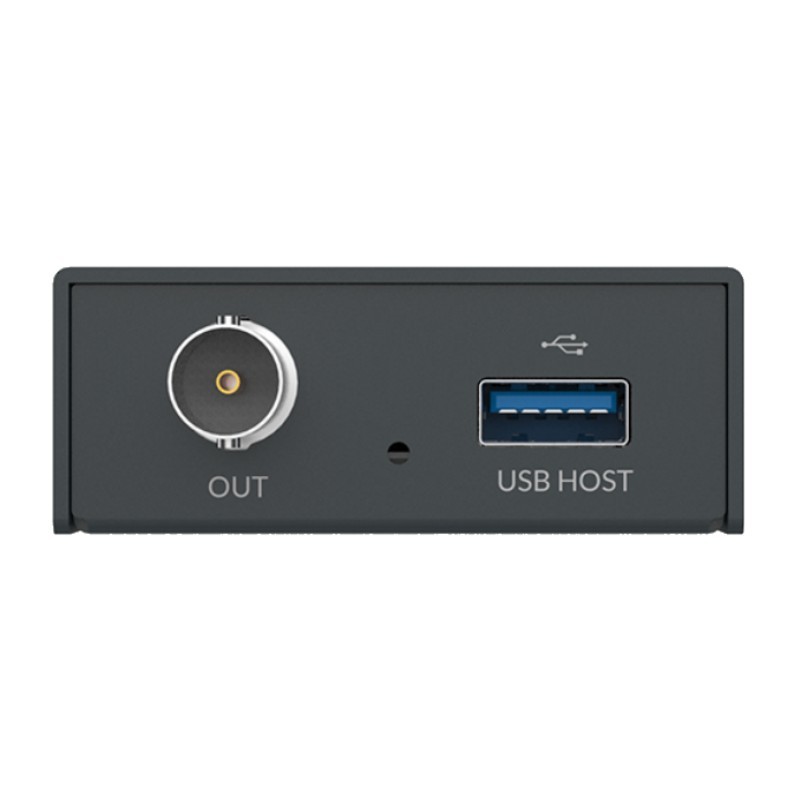

Output interfaces: BNC: SD/HD/3G SDI
USB interface: USB 2.0 Type B (5V/2.1A power supply, USB RNDIS/ECM) / USB 3.0 Type A connecting peripherals (keyboard and/or mouse)to set up device
Network interface: 10/100/1000 Mbps Ethernet / Support IEEE 802.3af PoE

On-board Control Buttons

MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection

SDI Output Feature

Max output: 1920x1080p60
Support 48KHz 16-bit 8-channel audio output

Decoding Features

Decoding 1080p60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
Support NDI 4.5
Support H.264/H.265 video decoders
Support AAC/MP3 audio decoders

Firmware

Support manual update using Web UI

Others

LED Indicators
2-year Warranty
1/4-20 Mounting Hole

Included

Power Adapter (US/EU/UK/AU/JP)x1
USB Type A to Type B cable x1
L bracket x1

Garantie	2

ProConvertforNDI_to_SDI_SPEC

Téléchargement (30.35k)
