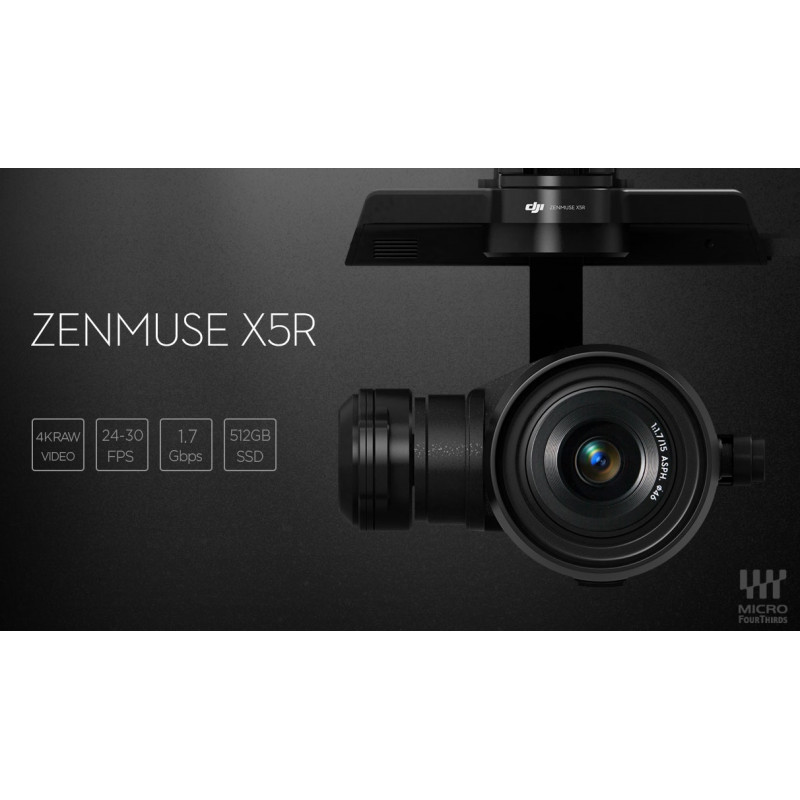

Dji Zenmuse X5R RAW - OSMO 4K camera with integrated gimball

In the Box:
ZENMUSE X5R Camera x1
SSD 512gb

Lossless cinema 4K RAW video
Record at 4096x2160 (24fps) or 1920x1080 (60fps)
Average 1.7 Gbps bitrate (2.4Gbps maximum)
Removable 512GB SSD
16MP photographs
12.8 stops of dynamic range

With the Zenmuse X5R, DJI has brought the power of RAW to a dedicated aerial camera for the first time. Capable of recording 4K (3840 x 2160) videos in
RAW at up to 30fps, the Zenmuse X5R gives you the ability to capture every video with all of its original data intact, giving you complete control to edit every
single frame in post as a RAW file. Coupled with a maximum bitrate of an astonishing 2.4Gbps, the 4K videos recorded by the Zenmuse X5R will amaze you
with a level of detail and clarity that's absolutely unmatched by any other aerial camera.


Note:

When using the Zenmuse X5 Series cameras, it is necessary to replace the original vibration absorbing board designed for the Inspire 1's standard Zenmuse X3 camera with the Zenmuse X5 Vibration Absorbing Board.
Click here to buy Inspire 1 Pro (Inspire 1 with Zenmuse X5)
Zenmuse X5 cameras require an adaptor for use with Osmo that is sold separately. This adaptor will be available soon.

Zenmuse X5R

136mm (W) x 125mm (H) x 131mm (D)

583 g

19.5W

25W

32° to 104° F (0° to 40° C)

Replaceable lens
M43 mount supporting auto-focus
DJI MFT 15mm f/1.7 ASPH
Panasonic Lumix 15mm f/1.7
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8
4/3-inch CMOS sensor

16M

4608x3456

100~25600

8 to 1/8000 s

15mm/ f1.7:72°
12mm/ f2.0:84°
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (3/5/7/10/20/30/60 sec)
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);
FHD: 1920×1080 (24/25/30/48/50/60p)
2.4Gbps (Average: 1.7 Gbps)

FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F), JPEG-Lossless(RAW)
Class 10 or UHS-1 or above Micro SD cards with Max capacity of 64GB
SSD with Capacity of 512GB (ZENMUSE X5R)
DJI MFT 15mm f/1.7 ASPH

f=15 mm (35 mm film camera equivalent: 30 mm)

7 diaphragm blades/circular aperture diaphragm

F1.7

F16

9 elements in 7 groups (3 aspherical elements)

0.2 m to 8 (from the focus distance reference line)

Micro 4/3

72°

Approx. 57.5 mm

Approx. 36 mm

Approx. 115 g

Zenmuse X5R

±0.02°

Detachable

Pitch: -90° to +30°
Pan: ±320°
Pitch: 120°/s
Pan: 180°/s
