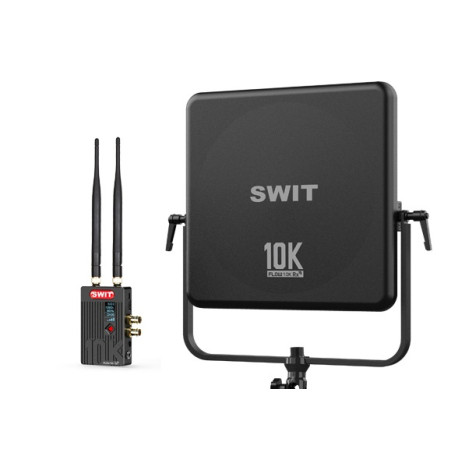

Swit Uncompressed HD Wireless Tx-Rx - 3GSDI & HDMI, with 3GSDI loop out 3km

KUWI 5.1-5.9GHz Wireless Technology

DFS Comply
3GSDI & HDMI, with 3GSDI loop out
High gain panel antenna with built-in receiver
10000ft/3km (Line-of-Sight) distance
Strong Wall-Cross Performance
2-ch SDI/HDMI audio transmission
OLED info and channel switching
Support multiple pairs working in one location
Multicast - 1 transmitter to unlimited receivers
Wireless protocol & content double encryption
Reclock and accurate color reproduction



KUWI Wireless Technology
SDI&HDMI 10000ft / 3km long distance
FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.


The Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Supports embedded audio (CH1&2) transmission.


The Panel Receiver
The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.

10000ft/3km Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW10K supports 10000ft/3km (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

Power Supply
The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket;
The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.

OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.


FLOW series Cross-Receiving
The FLOW10K can work together with other FLOW series wireless at different receiving distance.
Use FLOW10K Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx, and in 10000ft with FLOW10K Rx.
