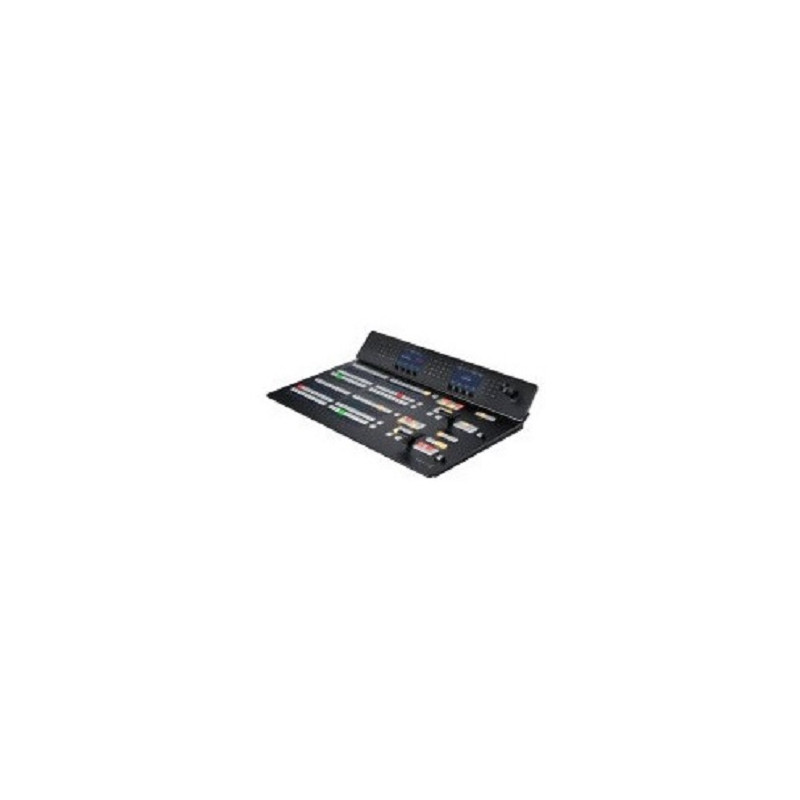

Blackmagic Design ATEM 2 M/E Advanced Panel 20

The ATEM 2 M/E Advanced Panel is a highly sophisticated advancement of previous panel models as a companion to separately available professional ATEM switchers from Blackmagic Design. Using features such as high-quality buttons, knobs, fader bars, and a 3-axis joystick, you'll be able to customize the extensive panel to your precise needs.

Complex live productions require a versatile control panel, and the ATEM 2 M/E Advanced Panel allows you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and it also sports 8 on-air indicators. The panel features two rows of M/E with 20 input buttons per row, two system control LCDs, independent LCDs for custom labeling of every row and button, 20 direct cross points, 40 shifted cross points, two preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.

The ATEM 2 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connecting to another panel or to a media-management computer. The panel receives firmware updates via its USB Type-C input.

Key Features
Tri-color LED crosspoint buttons, 20 direct cross points and 40 shifted cross points
Two M/E rows with 20 input buttons in each row
Two system control LCDs for each row and LCDs for customizing labels for each button
Two fader bars, 3-axis joystick, numeric keypad
Eight on-air indicators
Two transition previews with transition rate display
Compatible Operating Systems
macOS 10.14 Mojave, 10.15 Catalina or later
Windows 10, 64-bit

Ethernet Connector: 4 x RJ45, 10/100/1000 BaseT
Other I/O:
1 x USB Type-C, Firmware
Buttons 40 x Input Buttons (20 per Row)
Mix Controller
20 x Direct Cross Points
40 x Shifted Cross Points
2 x M/E Rows
2 x BKG Next Transition Selectors, Key 1 to Key 4
8 x On-Air Indicators
2 x DSK Transition Selectors: Auto, Cut, Tie/Preview
2 x Preview Transitions
LCD Display:
2 x System LCDs per Row
20 x LCDs (1 x per Button)
Controls
1 x 3-Axis Joystick
1 x Numeric Keypad
2 x Fader Bars
8 x Transport Control Buttons
Redundant Power Yes
Input Voltage: 100 to 240 VAC
Power Consumption: 150 W
Dimensions: 28.54 x 19 x 6.53" / 111 x 72.5 x 16.6 cm
Weight: 24.25 lb / 11 kg
Packaging Info
Package Weight: 37.25 lb / 82.8
Box Dimensions: 33.88 x 24.13 x 10.38"
