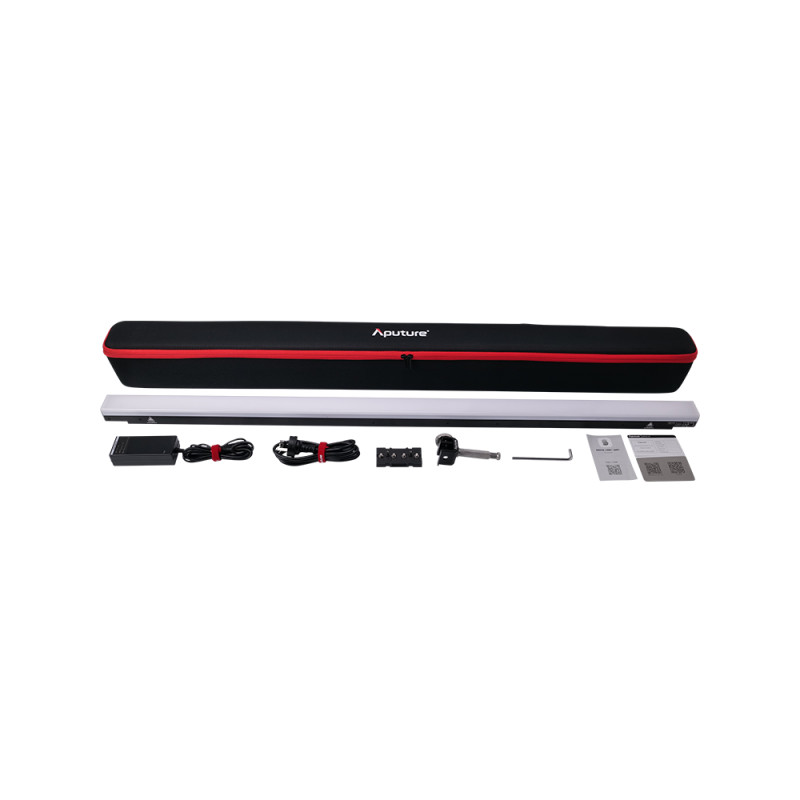

Aputure INFINIBAR PB12 full color LED 96 pixel bar

Aputure INFINIBAR 120 cm RGBWW full-color LED 96 pixel bar 2.000K-10.000K

The INFINIBAR Pixel Bar is Aputure's first RGBWW full-color LED pixel bar.
Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 is a 4-foot (120cm) pixel bar that excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

The INFINIBAR's most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects.
Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility.

The pixel bar's infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12's 96 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB12's 96 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure's USB-C to DMX Adapter.

2 It also incorporates critical color controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom.
Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

The INFINIBAR PB12's proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment and can reproduce >90% of colors within theRec.2020 Color Space.
Matching Aputure's high standards for color, the INFINIBAR PB12 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminum housing, the INFINIBAR PB12 provides ultimate flexibility across all shooting environments.
Whether linked together or used independently, the INFINIBAR's built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1/4-20in threads allow the PB12 to be mounted with ease.
And with its built-in 59.2Wh Lithium battery, the INFINIBAR PB12 can operate at its 27W max output for 80 minutes, making it a versatile fixture for your lighting toolkit.



CCT: 2.000K-10.000K
CRI: 96+
TLCI: 98+
CQS: 96+
SSI (D56): 74
SSI (Tungsten): 85
TM-30 RF (Average): 94
TM-30 RG (Average): 103
Color Chipset: RGBWW
Beam Angle (Half-Peak): 120°
Lumens: 2.077lm
Max Power Output: 27W
Max Power Consumption
Fixture: 36.5W
Power Supply: 40W
Operating Voltage & Current
Fixture: 24v, 1.8A
Power Supply: 100V-240V 50/60Hz, 1.5A
Battery Capacity: 7.4V, 8000mAh, 59.2Wh
Battery Life: Approx. 80 Mins @ Max Output
Charge Time: Approx. 150 Mins (24V/2.67A)
Pixel Mapping: 96 Pixels
Operating Temperature: -10°C-45°C/14°F-113°F
Control Methods: Sidus Link App, DMX/RDM via USB-C1, LumenRadio CRMX
Wireless Operating Range
Bluetooth: less or equal 80m/ less or equal 262.5ft
LumenRadio: less or equal 100m/ less or equal 328.1ft
IP Rating: IP 20
Screen Type: OLED
Firmware Upgradeable: Sidus Link, USB-C
Cooling Method: Passive Cooling
Mounting: INFINIBAR Rail
Dimensions
Fixture: 1,204 x 45 x 43mm / 47.4 x 1.77 x 1.69in
Fixture+Spacer: 120.4 x 4.5 x 5.2cm / 47.4 x 1.77 x 2.05in
AC Power Supply: 12.0 x 5.3 3.2cm / 4.72 x 2.09 x 1.26in
INFINIBAR Clamp: 12.2 x 5.5 x 4.0cm / 4.8 x 2.17 x 1.57in

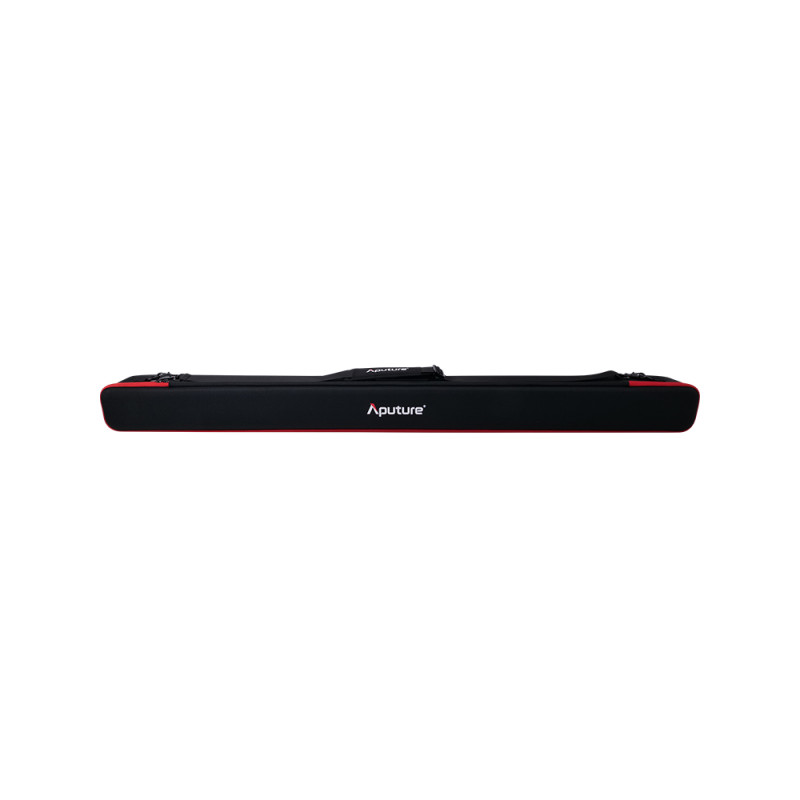

Case: 127.7 x 13.0 x 12.5cm / 50.0 x 5.1 x 4.9in
Weight
Fixture: 1.96kg / 4.31lbs
Fixture+Spacer: 2.09kg / 4.61lbs
AC Power Supply: 0.49kg / 1.08lbs
INIFNIBAR Clamp: 0.27kg / 0.60lbs
Total: 2.85kg / 6.28lbs
Est. LED Lifetime (L70): 50,000 Hours
Est. Color Shift Over Lifetime: 2% Over 6,000 Hours
Certifications: CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE
