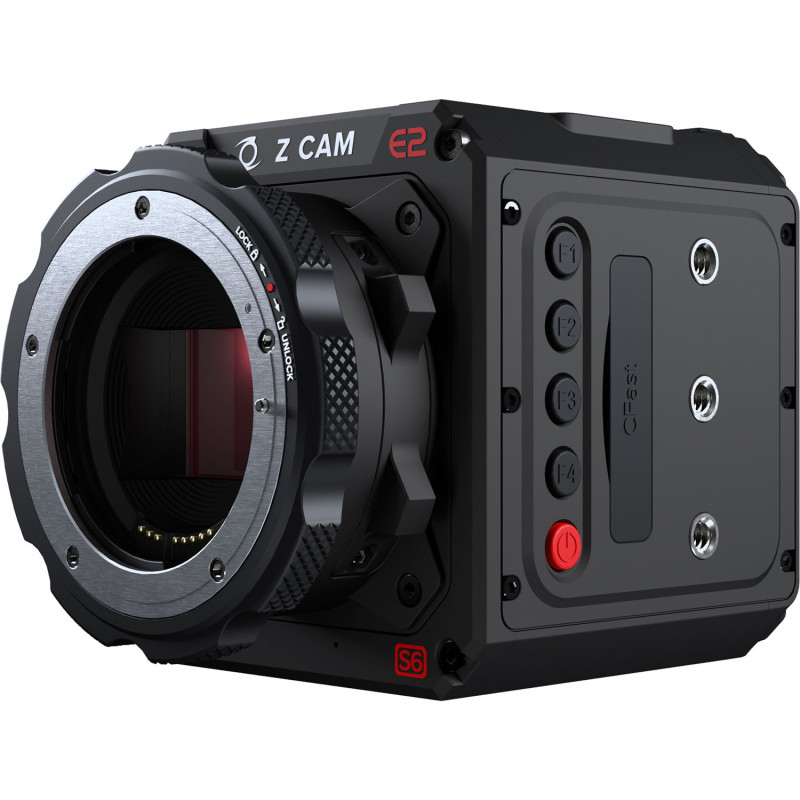

Z-Cam E2-S6 Monture EF Camera 6K

Shoot professional high-definition cinema footage with the Z CAM E2-S6 Super 35 6K Cinema Camera with a Canon EF lens mount. The camera features a Super 35 sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 6K at up to 75 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, MOV and MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in the ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.
Firmware 0.88
Firmware 0.88 enables ZRAW recording to the camera.
4K Capture and Recording

Unburdened by a recording time limit, you can record 6K at up to 75 fps for up to the limit of your recording media's capacity
CMOS sensor with 15 stops of dynamic range
The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
H.265 (10-bit color) internal recording on CFast 2.0 cards
4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
Full metal housing for efficient heat dissipation

Interfaces and Expandability

USB 3.0 Type-C for camera control and data transformation only
Two serial ports for camera control
Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
LANC port for remote control including power on/off

iOS App
Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview.
Camera Settings

White balance: Auto, preset, manual (2300 to 7500K)
Focus modes: MF, AF, CAF
Image: Brightness, contrast, saturation, sharpness
LUT: REC. 709, Z-Log2, FLAT, HLG
Timecode: Current time, manual input

Camera Body

Made from aluminum for strength and heat dissipation
2-pin LEMO 12 VDC power output
Powers from included 2-pin LEMO 12 VDC adapter or optional L-series batteries

Image Sensor
Image Sensor Size 23.4 x 15.67 mm (Full-Frame)
Sensor Type CMOS
Sensor Resolution Effective: 26.00 MP
ISO 400 to 125,000 (Expanded)
400 to 1250 (Native)
Advertised Dynamic Range 14 Stops
Camera
Lens Mount Canon EF
Shutter Speed 1/1 to 1/8000 sec
Shutter Angle 1 to 360°
Built-In ND Filter None
Built-In Microphone Type Stereo
Recording Media 1 x CFast 2.0 Card Slot
Internal Recording
Raw Recording Raw 10-Bit:
4096 x 2160 at 30 fps (300 Mb/s)
Recording Modes H.265/MOV/MP4 4:2:0 10-Bit:
6244 x 4168p up to 30 fps (300 Mb/s)
6144 x 3240p up to 48 fps (300 Mb/s)
6144 x 2592p up to 75 fps (300 Mb/s)
5760 x 3240p up to 48 fps (300 Mb/s)
5552 x 4164p up to 30 fps (300 Mb/s)
4992 x 4160p up to 30 fps (300 Mb/s)
4096 x 2160p up to 75 fps (300 Mb/s)
4096 x 1728p up to 100 fps (300 Mb/s)
3840 x 2160p up to 75 fps (300 Mb/s)
1920 x 1080p up to 120 fps (300 Mb/s)
H.264/MOV/MP4 4:2:0 8-Bit:
6244 x 4168p up to 30 fps (300 Mb/s)
6144 x 3240p up to 48 fps (300 Mb/s)
6144 x 2592p up to 75 fps (300 Mb/s)
5760 x 3240p up to 48 fps (300 Mb/s)
5552 x 4164p up to 30 fps (300 Mb/s)
4992 x 4160p up to 30 fps (300 Mb/s)
4096 x 2160p up to 75 fps (300 Mb/s)
4096 x 1728p up to 120 fps (300 Mb/s)
3840 x 2160p up to 75 fps (300 Mb/s)
3840 x 1620p up to 90 fps (300 Mb/s)
1920 x 1080p up to 120 fps (300 Mb/s)
Audio Recording MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 24-Bit 48 kHz AAC Audio
MOV: 2-Channel 24-Bit 48 kHz AAC Audio
External Recording
Video Output 4:2:2 10-Bit via HDMI:
3840 x 2160p at 60 fps
Interfaces
Video Connectors 1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Input
1 x 5-Pin LEMO Input
1 x 1/8" / 3.5 mm Stereo Output
Other I/O 1 x USB Type-C Camera Interface Data, Control Input/Output
1 x 2.5 mm LANC Control Input
1 x RJ45 GIG-E 1000BASE-T, LAN Data, Control, Monitor Input/Output
2 x 4-Pin LEMO Camera Interface Control Input/Output
Wireless Interfaces 2.4 GHz, 5 GHz Wi-Fi Control
Display
Display Type Status Display
EVF
EVF Optional, Not Included
Power
Battery Type Sony L-Series
Power Connectors 1 x 2-Pin LEMO (12 VDC) Input
1 x 2-Pin LEMO (12 VDC) Output
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
General
Accessory Mount 11 x 1/4"-20 Female
Material of Construction Aluminum
Dimensions 3.91 x 3.9 x 3.59" / 99.2 x 99.1 x 91.2 mm
Packaging Info
Package Weight 4.58 lb
Box Dimensions (LxWxH) 10.4 x 8.7 x 5.2"
